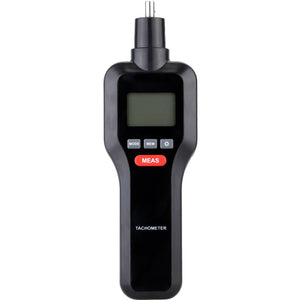

2 in 1 Digital Laser Tachometer Tach RPM Tester LCD Motor Electrical Machine Rotate Speed Meter

Description:

This is a professional and practical tachometer with wide measuring type and range. It is dual use, you can choose non-contact or contact way to test on your needs. With laser technology to targeting, you can get more accurate data. It can be widely used in the field of motor, electrical fan, paper making, plastic industry, chemical fiber, washing machines, car making etc.



Features:


Dual use for non-contact & contact testing on your needs.

Have 4 different connecting head used for contact measuring.

Wide measuring type: can test rotational speed(RPM), counter rotating(REV),frequency(Hz), surface speed(m/minute; inch/min; feet/min; yard/min and length(meter, inch, feet, yard).

High resolution ratio and 5-digit backlight LCD display.

Latest laser targeting technology.

All 30 data storage: 10 maximum/ minimum/instantaneous measuring data.

Wide measuring range: non-contact way--2 to 99999RPM; contact way--2 to 20000.

Sampling time is just 0.5 sec.

Extensive usage: usually can be used in the field of motor, electrical fan, paper making, plastic industry, chemical fiber, washing machines, car making etc.



Specifications:


Accuracy: 0.02% +/- 2 digits

Contact Measuring Range: 2-20000RPM

Non-contact Measuring Range: 2-99999RPM

REV Measuring Range: 1-99999

Resolution Ratio: 0.1 or 1
Display: 5-digit Backlight LCD Display

Sampling Time: 0.5sec.

Measuring Distance: 50mm-600mm

Power Consumption: 45mA

Working Temperature: 0??50??(32??122??

Item Size: 18 x 7 x 2.8cm / 7.09 x 2.76 x 1.1in

Item Weight: 196g / 6.92oz

Package Size: 21.5 x 13 x 5.3cm / 8.47 x 5.12 x 2.09in

Package Weight: 290.5g / 10.23oz
Power Supply: 9V Battery (Not Included)



Package Included:


1 x Tachometer

4 x Connecting Head

1 x Red Protection Cover

1 x Reflective Tag

1 x Englsih User Manual

Detail Pictures:
