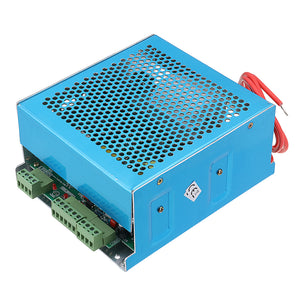

220V 40W Power Supply for CO2 Laser Engraver Cutter Engraving Machine Router
Tax included.
Specification:
AC Input Voltage |
AC220V |
|
AC Input Frequency |
47~440Hz |
|
Voltage Output |
30KV |
|
Maximum Current |
20mA (depending on the laser tubes of different manufacturers) |
|
Efficiency |
92% |
|
Overcurrent Protection |
130% of maximum current |
|
Open Circuit Protection |
Yes (short term) |
|
Structure |
Fan cooling |
|
High Electric Level Control Voltage Range |
=3V |
|
Low Electric Level Control Voltage Range |
=0.6V |
|
Working Temperature |
-30°C~+65°C |
|
Relative Humidity |
20~85%RH (no condensation) |
|
Insulation Resistance |
≥50MΩ (DC500V) |
|
Earth Leakage Current |
≤1mA(AC220V) ≤0.5 mA(AC110V) |
|
Vibration Resistance |
Amplitude: 0.5mm frequency 10~55Hz 3D direction 2 hours |
|
MTBF |
≥30,000 hours |
|
Test Time at Full Load and 60°C |
12 hours |
|
Features:
1. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
2. Easy control: the start and stop of laser can be easily controlled by TTL level.
3. The power supply has output open circuit protection.
4. The power supply has TTL signal indication, water through signal indication and laser output indication.
Package Included:
1 x CO2 Laser Power Supply
