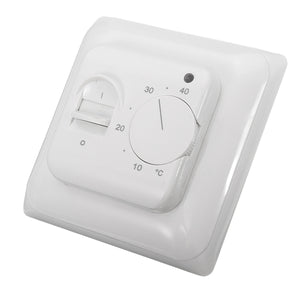

230V 16A Electric Mechanical Underfloor Heating Thermostat Switch with Floor Sensor
Tax included.
Description:
AC 230V 16A Electric Mechanical Underfloor Heating Thermostat Switch Floor Sensor
Specification:
-Power supply: 230V 50/60HZ
-Power consumption: 5W
-Max. Current: 16A
-Adjusting range: 4?�~45??br />-Differential per. tem.: ±0.5 ??br />-Operating temperature: -5?�~50??br />-Degree of protection: IP20
-Housing material: self-extinguishing Polycarbonate(PC)
-Floor sensor: NTC sensor 3m
-Dimension: 86mm x 86mm x 49mm
-Certification CE
Features:
It controls the temperature with an NTC sensor placed externally.
With built-in 10K NTC sensor, additional 3m sensor cable included.
With manual switch and knob for easy operation.
Can fit into a standard single switch backbox.
LED indicator is light when heating is on.
Full Installation and Operation Instructions Included.
Package Included:
1 x Manual thermostat
1 x 3 meter sensor cable
2 x Mounting screws
1 x English user manual
More Details:
AC 230V 16A Electric Mechanical Underfloor Heating Thermostat Switch Floor Sensor
Specification:
-Power supply: 230V 50/60HZ
-Power consumption: 5W
-Max. Current: 16A
-Adjusting range: 4?�~45??br />-Differential per. tem.: ±0.5 ??br />-Operating temperature: -5?�~50??br />-Degree of protection: IP20
-Housing material: self-extinguishing Polycarbonate(PC)
-Floor sensor: NTC sensor 3m
-Dimension: 86mm x 86mm x 49mm
-Certification CE
Features:
It controls the temperature with an NTC sensor placed externally.
With built-in 10K NTC sensor, additional 3m sensor cable included.
With manual switch and knob for easy operation.
Can fit into a standard single switch backbox.
LED indicator is light when heating is on.
Full Installation and Operation Instructions Included.
Package Included:
1 x Manual thermostat
1 x 3 meter sensor cable
2 x Mounting screws
1 x English user manual
