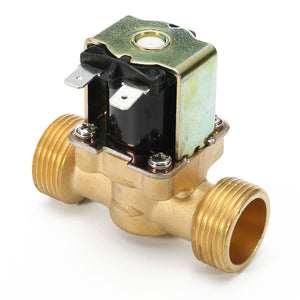

3/4 inch 12V DC VDC Slim Brass Electric Solenoid Valve NPSM Gas Water Air N/C
Tax included.
Features :
Body Material: Cast high-quality solid brass
Operation Mode: N/C (normally closed)
Pipe Size: 3/4" NPSM
Voltage: 12V DC
Applications: Space-limited, energy-efficient, home, hobbyist
Operation Type: 2-way 2-position direct lift diaphragm
Water pressure: 0.02-0.8Mpa
Size: 68*60*35mm
Flow Direction: Unidirectional (follow the arrow on valve body)
Media: Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline)
Operating Pressure Differential: 3-145 psi (0.02-1 MPa)
Operating Temperature: 15-125 °F (-10~50 °C)
Media Temperature: 15-180 °F (-10~80 °C)
Material:
Body: Brass
Insert: Stainless steel (plunger, spring, etc.)
Seal: NBR (aka Buna-N, Perbunan, and nitrile rubber)
Diaphragm: NBR with nylon support
Operation Mode: N/C (normally closed)
Pipe Size: 3/4" NPSM
Voltage: 12V DC
Applications: Space-limited, energy-efficient, home, hobbyist
Operation Type: 2-way 2-position direct lift diaphragm
Water pressure: 0.02-0.8Mpa
Size: 68*60*35mm
Flow Direction: Unidirectional (follow the arrow on valve body)
Media: Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline)
Operating Pressure Differential: 3-145 psi (0.02-1 MPa)
Operating Temperature: 15-125 °F (-10~50 °C)
Media Temperature: 15-180 °F (-10~80 °C)
Material:
Body: Brass
Insert: Stainless steel (plunger, spring, etc.)
Seal: NBR (aka Buna-N, Perbunan, and nitrile rubber)
Diaphragm: NBR with nylon support
Package includeds :
1 x Solenoid Valve
