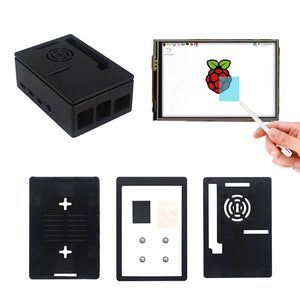

3.5inch MHS LCD Screen Display + Transperent/Black Dual Use Box ABS Case Kit for Raspberry Pi 4 Model B
Tax included.
Note: Raspberrry Pi board is not included.
Introduction:
Introduction:
This is the dual use ABS case for 3.5inch screen kit, suitable for Raspberry Pi 4 Model B.It is esay to install the case with screen and Raspberry Pi.When you use the Raspberry Pi with 3.5inch screen,please remove the cover of case;When you use Raspberry Pi with cooling fan,you needn't remover the cover of case.
Note:The 3.5inch screen and cooling fan can't be used at the same time.
Specifications:
Specifications:
Colour: Black/Transperent
Material: ABS plastic
Size: 90*61*35
Applicable to: Raspberry Pi 4B
3.5-inch touch screen or fan that can install Raspberry Pi
Knowing that: 3.5-inch display and fan cannot be installed at the same time due to the PIN pin
About 3.5inch MHS LCD Screen Display
- Physical resolution 320 x 480, with resistive Press control
- It supports up to 125MHz SPI signal input, showing stable no screen and no flicker
- With the refresh rate of raspberry pie around 50Hz, play video to play the game without pressure
- Support FBCP software drive, support double screen display, can adjust the resolution of the software to zoom
- Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+,4B)
- Support Raspbian/Ubuntu/Kali system, provide driver and image
- Screen Size: 3.5inch
- LCD Type: TFT
- Module Interface: SPI (upports up to 125MHz SPI input)
- Press Screen Controller: XPT2046
- LCD Driver IC: ILI9486
- Backlight: LED
- Power consumption: 0.16A*5V
- Working temperature(??: -20-60
- Size: 85.42*55.60 mm
Package Included: (Note: Raspberrry Pi board is not included.)
1 x ABS box case
1 x touch screen
1 x touch screen pen
