35mm Drilling Door Locator with or without Drill Concealed Hinge Hole Boring Jig Drill Guide Woodworking Tool

35mm Drilling Door Locator with or without Drill Concealed Hinge Hole Boring Jig Drill Guide Woodworking Tool

  • R 365.01
    Unit price per
  • Save R 365.01
Tax included.

SKU:

Description

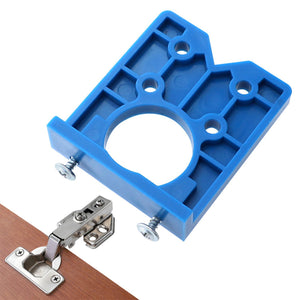

35mm Drilling Door Locator Concealed Hinge Hole Boring Jig Drill Guide Durable

NOTE: Not included hinge and electric drill.

Specification:
Drill Bit Material: Alloy
Hinged Hole Locator Material: ABS
Drill Bit Size: 35 mm
Hinged Hole Locator Size: 77 x 66 mm

Features:
Easy to use.
Stable characteristics, high reliability.
Hinged hole locator, ABS plastic material, light and portable, easy to operate.
Alloy material rotor, sharp and durable, continuous knife, suitable for positioning and installation of furniture door hinges.

Instructions:
1. Determine the position of the hinge cup, the short plate is facing upward, the screw is fastened on the edge of the wooden board, and the hinge cup hole is drilled;
2. Draw a corresponding center line on the other board, the short board faces downward, the middle line is aligned with the inverted triangle, and the hinge positioning hole is drilled;
3. Install the hinges.

Package Included:
Type 1:
1 x Hinged Hole Locator

Type 2:
1 x Hinged Hole Locator
1 x Drill Bit

Notes: Not included hinge and electric drill.

More Details:
