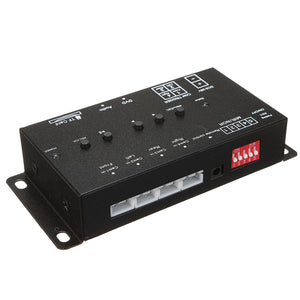

360 Degree DC 12V Car SUV DVR Record Panoramic View All Round Rear View Camera System

Feature:
The system for your car blind spot image perspective,for your safe driving escort.
Enjoy driving,driving without a blind spot to experience the feeling of no dead ends.
ST313 has a parking monitoring function, with high sensitivity loss of power protection system.
When the battery power is too low, automatic power, safe and reliable, green and no pollution.

Specification:
Color: Black
Size: 113*50*22mm
Power Consumption: Hosts running: 2W; Power-saving mode: 1W
Output Power: 12V/1A(camera power supply)
Rated Voltage: DC12V/24V
Working Temperature: 0??55??/span>

Setting Method:
1. Dial switch 5 on the top,1-4 in the bottom,set the boot screen for "??quot; mode.
2. Dial switch 1,2 on the top,3-5 in the bottom,set the machine boot,do not enter the standby mode
(5 seconds after the boot into the standby function canceled) memory.
3. Dial switch 1,3 on the top,other dial switch in the bottom,set the left and right trigger line can be directly
switched on and triggered,exit 3 seconds off.
4. Dial switch 2,3 on the top,and other dial in the bottom,set the left and right images automatically trigger
return time of 10 seconds(Note:When 2 trigger lines are triggered at the same time,the corresponding video
channel of the later trigger line displays the automatic image screen after 10 seconds.).
5. Dial switch 1,4 on the top,other dial switch in the bottom,set the button defined as short press open screen,
remember the current screen mode(please use remote control screen mode),again short to standby.

Package Included:
1 X Rear View Camera System
1 X USB
1 X Remote Control
1 X Filter&Fuse Box
9 X Cable
