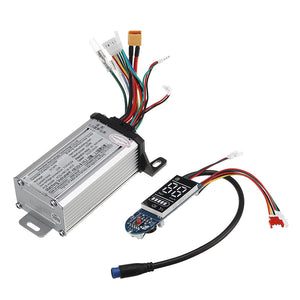

36V 350W XT30 Motor Controller+Dashboard For Scooter Electric Bicycle E-bike

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Note:

 This controller is the replacement parts for ID: 1647907  ,if you don't have ID: 1647907 ,you should not buy it

ï»?/b>

Specification:

Instruction:

1. Boot: Long press the boot (about 1s). At the same time, the buzzer sounds twice.

2. Shutdown: Press and hold 3s to shut down. At the same time, the buzzer sounds twice.

3. Light: In the power-on state, short press (within 1 second) once, turn on the front and rear lights,

the headlights are always on, and the taillights are flashing.

4. Brake: Electronic brake + disc brakes. The tail light is long on the brakes.

5. Gear shift: The power-on state, the default is the low-speed file;

press the button twice (press twice in one second) to switch the gear position; Green is low gear; red is high gear

6. Battery display: 33v-36v The first light is long

36v-37v one or two lights long bright

37v-38.5v one or two lights long bright

38.5v or more, one, two, three, four lights

Low voltage alarm: The first light flashes when the battery is below 33V, and the buzzer sounds 6 times.

7. Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,

the throttle must return to the initial position to release the low voltage and return to normal operation.

8. Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control;

after the cruise is fixed, the throttle can be released; press the brake

or push the throttle again to release the cruise control and enter the manual mode.

9. Speed: The low speed gear is 15±2km/h; the high speed gear is 25±2km/h.

10.Automatic shutdown: Automatically shut down 10 minutes after no operation.

Error Code:

1) 'E1' Motor Hall failure

2) 'E2' MOS

MOS fault or motor phase line short circuit fault

3) 'E3' Brake failure

4) 'E4' Handlebar failure

5) 'E5' Undervoltage protection

6) 'E6' Instrument/control communication failure

7) 'E7' Overvoltage protection

8) 'E8' Controller op amp failure

9) 'E9' Stall protection
