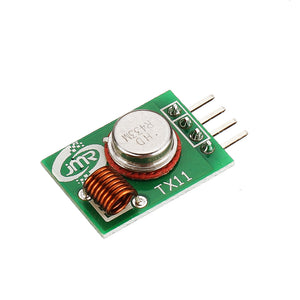

3pcs 433MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board

Features:



(1) The transmission power is large, and the transmission power is greater than 30 mW;

(2) Wide operating voltage, 2.5V-9V;

(3) Operating frequency: 433.92 MHz

(4) Using SAW frequency stabilization (+-75KHZ), the working frequency is stable;

(5) With the RXB8 receiving module, the distance can reach 800 meters;

(6) Static power consumption Low emission is current consumption: 10mA, there is basically no current consumption when there is no data transmission;

(7) Working temperature: -20 ° C ~ +60 ° C;

(8) Dimensions: 15x21x5.5mm;
(9) Modulation rate: 3KB/S

(10) Input signal: TTL level.



Application range:



(1) Car remote control door switch (RKE);

(2) Remote control door opener and gate;

(3) Wireless security alarm;

(4) Remote control curtain machine;

(5) Wireless industrial controllers;

(6) Wireless data transmission.

Package includes:

3 x ASK Wireless Transmission Module
