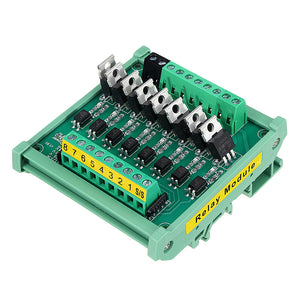

3pcs 8CH 24V IO Card PLC Signal Amplifier Board NPN to PNP Mutual Input Optocoupler Isolation Transistor Output Relay Module

Technical Parameters:



Control voltage: DC24V

Input current: 5-10mA

Output type: non-contact type

Drive component: P/N channel FET

Maximum output current: 6A

Output voltage: DC5-24V

Operating time: 1ms or less

Reset time: 1ms or less

Maximum switching frequency: 2000Hz

Horizontal group installation: standard rail mounting

Instructions:

X1~X7 are the access terminals of the trigger signal.

S/S is the selection terminal for the high and low levels of the trigger signal.



E.g:



When the trigger signal is high, then the S/S terminal should be connected to the negative terminal corresponding to the trigger signal.

Conversely, when the trigger signal is low, the S/S terminal should be connected to the positive pole corresponding to the trigger signal.

Package includes:

3 x Relay module
