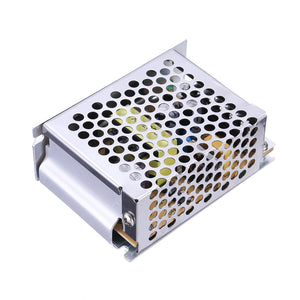

3pcs AC 100-240V to DC 12V 5A 60W Switching Power Supply Module Driver Adapter LED Strip Light

Features:



1. Good anti-interference performance and high reliability.

2. Low operating temperature and long service life.

3. Wide input voltage range, (100-240V) in line with global usage standards.

4. Good insulation performance and high electric strength.

5. Full load high temperature burning machine, 100% aging test.



Specifications:



Model: HS-60-12

DC output voltage: 12V

Output voltage tolerance: ±1%

Rated output current: 5A

Output current range: 0 - 5A

Ripple and noise: 100mVp-p

Line stability: ±0.5%

Load stability: ±0.5%

DC output power: 60W

Efficiency: 85%

DC voltage adjustable range: ±10%

Input voltage range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC

Input current: 2A/115V 1A/230V

Inrush current: cold start current 30A/115V 60A/230V

Leakage current: <3.5mA/240VAC

Overload protection: 105%~150%

Overvoltage protection: 15%-135%

Temperature coefficient: ±0.03%/°C (0-50°C)

Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC

Shock resistance: 10 - 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axle

Pressure resistance: input and output: 3KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC

Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ

Working temperature, temperature: -10 ° C - +60 ° C, 20% - 90% RH

Storage temperature, temperature: -20 ° C -+85 ° C, 10% - 95% RH

Dimensions: 85 × 60 × 34mm



Package Included:



3 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
