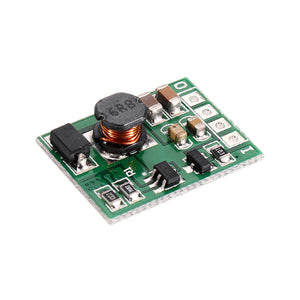

3pcs DC 5V Step Up Boost Converter Voltage Regulate Power Supply Module Board with Enable ON/OFF
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Specifications:
Working frequency: 1MHz
Up to 94% Efficiency (usually is 75%-91%)
Quiescent current : Turn on output 210uA,Turn off output 5uA.
Operating temperature : -40~+85 ??/span>
Storage temperature : -65~+150 ??/span>
Size : 20 x 15 x 6mm
Weight : 1.5g
Protection :
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)
Output 5V :
Input voltage DC 2.6 ~ 4.5V,output DC 5V±3%
Maximum output : 5V/1300MA(See the table below for details)
Pin Description:
Vi : Input positive(+).
En : Output enable, Connect to GND turn on output, Not connected(Or Connect to Vi) turn off output ,This pin can also be controlled by MCU, low level turn on output, high level Turn off output.
G : Input and Output negative(GND/-).
Vo: Output positive(+).
Applications:
Battery powered equipment
Instrumentation, multimeter
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
Power bank
LED Lighting
WIFI Router
PLC RS485 devices
Attention:
1. Input voltage can not be greater than the maximum input.
2. Output power can not be greater than the maximum load for a long time.
3. Input power must be greater than the output power, because the power consumption of the module itself.
Package Included:
3 x 5V Step Up Boost Converter Voltage Regulate
