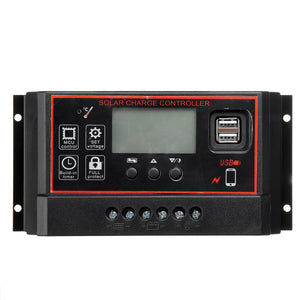

40A/50A/60A 12V/24V Solar Panel Charger Controller Battery Regulator Dual USB LCD Display
Tax included.
Features:
1. Build-in industrial micro controller.
2. Fully 3-stage PWM charge management.
3. Big LCD display, all adjustable parameter.
4. Dual mosfet reverse current protection, low heat production.
5. Dual USB output, the maximum current of 2.5A, to support Apple's mobile phone charging.
6. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
7. Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system.
Specification:
Shell Material |
Plastic |
Back Board Material |
Iron(10A-30A) |
Color |
Black+Red |
Display |
LCD Screen |
Batt Voltage |
12V/24V Auto |
Charge Current |
40A, 50A, 60A (pls choose which current you need) |
Discharge Current |
10A, 10A, 10A |
Self-consumption |
ï¼?0MA |
Operating Temperature |
-35~+60 degree |
Max Solar Input |
12V battery, the highest 23V |
Float Charge |
13.7V(defaul, adjustable) |
Discharge Stop |
10.7V(defaul, adjustable) |
Discharge Reconnect |
12.6V(defaul, adjustable) |
Charge Reconnect |
13V |
Voltage of Open Light |
Solar Panel 8V(Light lights delay) |
