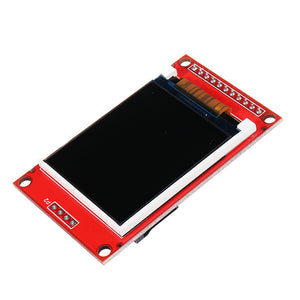

5pcs 1.8 Inch TFT LCD Display Module Color Screen SPI Serial Port 128*160
Tax included.
Size: 1.8 inch SPI serial bus
Resolution: 128*160
Driver IC: ST7735
1. Support various MCU in-line without any wiring
2. Integrated voltage regulator IC, support 5V or 3.3V power supply
3. On-board level conversion scheme, truly compatible with 5V/3.3V IO level, supporting various microcontroller IO connections
4. Integrated SD card expansion circuit,
5. Reserve SPI FLASH font circuit to facilitate extended application
Technical Parameters:
Package includes:
5 x LCD module
Technical Parameters:
Display color: 16BIT RGB 65K color
Size: 1.8 (inch)
Type: TFT
Driver chip: ST7735S
Resolution: 128 * 160 (Pixel)
Module interface: 4-wire SPI interface
Backlight: 2 White Led
Effective display area: 28.03x35.04 (mm)
Module PCB size: 38.30x62.48 (mm)
Working temperature: -20 ??~ 60 ??/span>
Storage temperature: -30 ??~ 70 ??/span>
Working voltage: 5V / 3.3V
Weight (including packaging): 18 (g)
Pin Description:
Pin Description:
Number | PIN | Description |
1 | VCC | LCD screen power supply (3.3V ~ 5V) |
2 | GND | LCD screen power ground |
3 | GND | LCD screen power ground |
4 | NC | No definition, reserved |
5 | NC | No definition, reserved |
6 | NC | No definition, reserved |
7 | CLK | LCD screen SPI bus clock signal |
8 | SDA | LCD screen SPI bus write data signal |
9 | RS | LCD screen register / data selection signal, low level: register, high level: data |
10 | RST | LCD reset signal, low level reset |
11 | CS | LCD chip select signal, low level enable |
Package includes:
5 x LCD module
