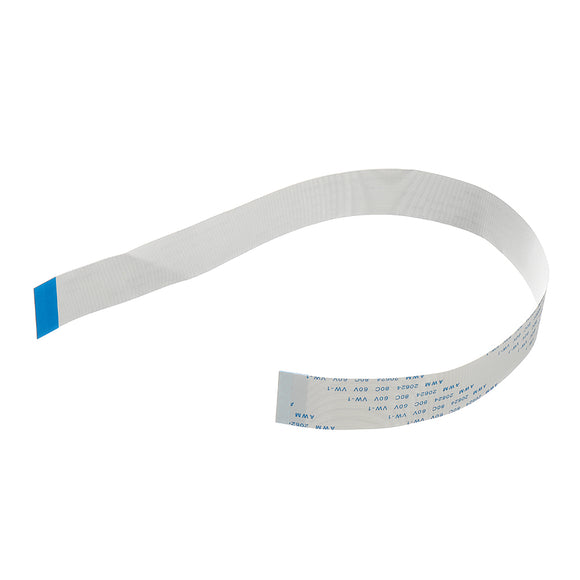

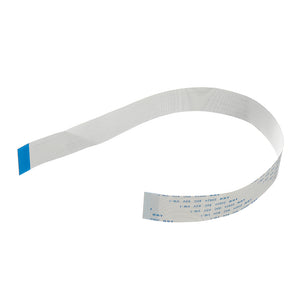

5Pcs 30cm AWM 20624 80C 60V 3D Printer FFC FPC Flexible Display Cable

0. FFC soft cable 0.5 pitch 36pin, the direction is of the same direction

1. P = bit = core = pin (number of copper)

2. Cable length: 30cm

3. Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm)

    Spacing algorithm: bus width / (number of pins+ 1)

4. Direction (check the ends of the cable): A with the same direction (metal surface in the same side)

5. Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.
6. Quantity: 5

Package Included:

5 x 30cm Display Cable
