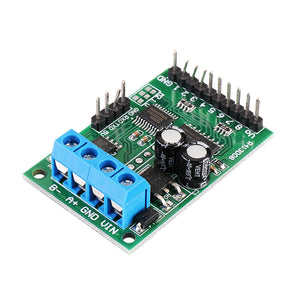

5pcs 8Channel DC 6-24V RS485 Modbus RTU Control Module UART Relay Switch Board PLC

5pcs 8Channel DC 6-24V RS485 Modbus RTU Control Module UART Relay Switch Board PLC

  • Save R 1,111.59
Tax included.
SKU:
Descriptions:

- Operating Voltage : DC 6-24V(6-24 Version)
- Operating Current : 10-15MA
- ''open'' ''close''  ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
- Two instruction-control mode : AT command and MODBUS command
- Under the AT command ,the maximum delay is 9999 seconds
- Under the MODBUS command ,the maximum delay is 255 seconds
- AT commands can be made serial HyperTerminal (serial assistant) Enter;
- MODBUS commands can be made serial HyperTerminal (serial assistant)  OR ''Modbus Poll'' Enter;
- Under the MODBUS command mode, it can support up to 247 devices in parallel
- With RS485 and RS232 (TTL) dual bus interface
- Output control pins 8, 5V TTL level, low level (default) / high level output
- Size: 45 x 30 x 15mm

Applications:

Automated industry PLC
Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS485 remote control;

Package Included:

5 x 8Channel DC 6-24V RS485 Modbus RTU Control Module UART Relay Switch
