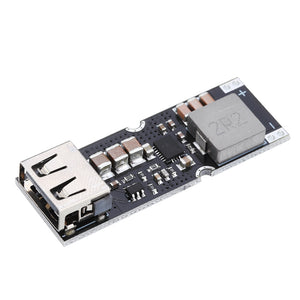

5pcs TPS61088 3.2V 3.7V 4.2V to 5V 9V 12V Boost Fast Charger Board For Phone QC Fast Charging

5pcs TPS61088 3.2V 3.7V 4.2V to 5V 9V 12V Boost Fast Charger Board For Phone QC Fast Charging

  • Save R 1,049.82
Tax included.
SKU:
Description:

Name: Single-cell lithium battery boost fast charging source module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V. After triggering fast charge, it is between 4.5V and 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. Output current is adaptive.
Output power: up to 24W.
Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement
Efficiency is up to 93%, with a typical value of 90%.
Input wiring method: wire bonding, try to use thick wire
Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Module net weight: about 7 grams


Supporting agreement:

1. Support FCP voltage and current output protocol.
2, support Qual comm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
3. Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
4. Support the protocol equipment of telecom enterprise YD/T 1591.

Package includes:

5 x TPS61088 boost fast charging module
