5V 1A In14 Nixie Tube LED Clock Glow Tube Clock Module Board Motherboard For IN14 Tube Digital Clock Without Tubes
Tax included.
Description:
1. 5V 1A micro usb
2. 7 colors(has RGB led.bottom light color, not the number light color)
3. Use good timing IC
4. Dimension: 187x48mm
5. Function: 24hours Display model, every 5mins refresh display, No alarm.
6. Package Contents :1x circuit board, No Tubes
7. The version is constantly updated, so the picture is subject to the actual product.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.
?‹light pipe can be used directly.the use of imported high-precision clock chip, a year less than 1 minutes error.using integrated IC drive program, the display is more stable and reliable
Item Type: Repair Tools & Kits
Feature: circuit board kit
Type: Watches for Parts
function: 24 hour mode, time display, anti poisoning program (every 10 minutes refresh the monitor), no alarm, remote control is not supported
IN14 Nixie Clock User Manual
Function:
1.Time
2. Colors back light(7 colors)
3. 12/24 hour module
4. Sleep module(22:00~07:00 no display. 07:00~22:00 display)
5. Refresh time setting(1~9 minutes) 3,Opertate:
2.1.Set Time: Click 'SET' key into setting time. Click 'Up','Down' to set time, and click 'Set' to finish.
2.2.12/24 hour module: Click 'Up' key to change
2.3.Sleep module. Click 'SET'long, while no display , into sleep module(22:00~07:00 no display. 07:00~22:00 display). Display all '0'number,out of sleep module.
2.4.Set refresh time: Click 'UP' long, and click 'UP'or 'Down'. refresh can be set 1~9 minutes,
2.5.Set back color: Click 'Down' to change color. when color refresh that means it is into change color automatic (every day change one color),or color is fixed.
Manufacturing requirements: Tubes white pin need solider to PCB white pin.

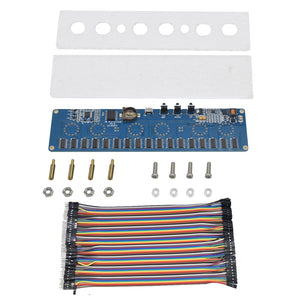

Package included:
1 x In14 Nixie Tube Digital LED Clock Assembled Circuit Board
1 x Cable
1 x Shell kit
