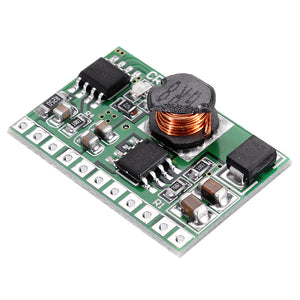

5V 2.1A Output UPS Mobile Power DIY Charger Board Step Up DC to DC Converter Module for 3.7V 18650 Lithium Battery

Tax included.

Specifications:

Charge voltage : DC 5V ( 4.6V-6.5V )

Charging current : 0-1A

Full charge voltage : 4.2V±2%.

Led indicator : 'OK' LED is fully charged OR battery failure status indicator; 'CR' LED is charge status indicator.

Discharge current : 0-3.5A;

Discharge quiescent current : 200uA

Discharge conversion efficiency : 78%-91%

Output current : 0-2.1A(5V);

Operating ambient temperature : -40??to +85??/div>

Storage temperature : -65??to +125??nbsp;

Size: 28 x 18 x 6.3mm

Weight : 2.7g

Note:

1. This module without lithium battery over-discharge protection.

2. In order to achieve more than 5W, it is recommended to use two or more batteries in parallel.

Applications:

Battery powered equipment

Lithium Battery 18650 14500

Mobile phone diy

Portable charger diy

UPS power supply equipment diy

Solar charging

MP3/MP4 player

Audio equipment

Video equipment

Portable Devices

Bluetooth Wifi Applications

MCU development board
?Šâ€?span style='font-family: "Open Sans", Arial, Helvetica, sans-serif, Heiti; font-size: medium;'>

Package Included:

1 x 5V 2.1A Output UPS Mobile Power DIY Charger Board Step Up Module
