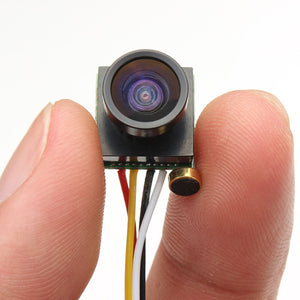

600TVL 1/4 1.8mm CMOS FPV 170 Degree Wide Angle Lens Camera PAL/NTSC 3.7-5V for RC Drone FPV Racing
Tax included.
600TVL 1/4 1.8mm CMOS FPV 170 Degree Wide Angle Lens Camera PAL/NTSC 3.7-5V
Description:
,
,
,
,
,
,
,
,
,
,
Description:
Resolution: 1280 * 960
Resolution: 600TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Illumination: 0.5LUX
Format:PAL / NTSC
Power supply range: 3.7-5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR ≥48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75Ω
Standard Lens :1.8 mm
Specifications PCB: 20mm*20mm
Power: DC5V ± 10% 70mA ± 10%
Operating temperature :-10 ??~ 60 ??RH95% Max
Recommend parts:
Camera Mount, Click here.
Note:It's only support 3.7-5V voltage, the manual book 5-12V voltage is wrong .
Resolution: 600TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Illumination: 0.5LUX
Format:PAL / NTSC
Power supply range: 3.7-5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR ≥48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75Ω
Standard Lens :1.8 mm
Specifications PCB: 20mm*20mm
Power: DC5V ± 10% 70mA ± 10%
Operating temperature :-10 ??~ 60 ??RH95% Max
Recommend parts:
Camera Mount, Click here.
Note:It's only support 3.7-5V voltage
Package included:
1 x 600TVL Wide Angle Lens Camera
,,,,,,,,,,
