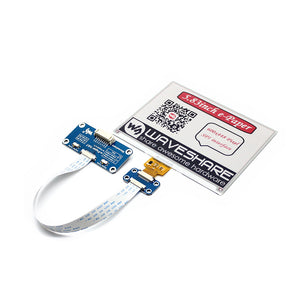

600x448 5.83inch E-Ink Display e-Paper HAT(B) for Raspberry Pi Red/Black/White Color SPI Interface
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Overview:
This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
??br>?ŠMore infor for you to know more
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Operating voltage: 3.3V~5V
Interface: SPI
Outline dimension: 125.40mm ? 99.50mm
Display size: 118.80mm ? 88.26mm
Dot pitch: 0.198 ? 0.197
Resolution: 600 ? 448
Display color: red, black, white
Grey level: 2
Full refresh time: 14s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
Interface
SYMBOL DESCRIPTION
VCC 3.3V~5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active
1. Refresh time: This refers to the global refresh time, that is, the time it takes to refresh each frame of the image; if the ink screen itself supports partial refresh, the partial refresh time is about 0.3 seconds
2. Pi interface: based on the standard interface design, suitable for Raspberry Pi Zero / Zero W / Zero WH / 2B / 3B / 3B +
Package Included: (raspberry pi board not included)
5.83inch e-Paper (B) x1
e-Paper Driver HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1
