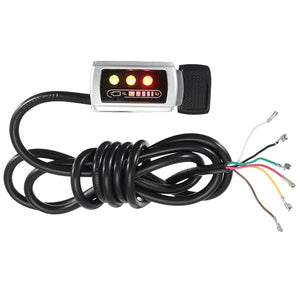

7/8 Electric Bike Handlebar Speed Battery Indicator Thumb Throttle With Self Lock
Tax included.
Description:
Material:Plastic PA66 GF20
Cable Length: Approx. 160cm / 62.9inch
Battery Indicator Voltage: 24V / 36V / 48V
Adjust speed Working Voltage:5V
Adjust speed Output Voltage:0.8-4.3V
Rotation angle:0°---70°
Operation temperature:-40??nbsp;~ +80??br />
Function:
Battery Indicator(Green,Red,Yellow) + Self-Lock (The Red Button) + Adjust Speed (The Black Button)
Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power
Red ,Black and White wire--- Adjust speed
Green wire----Positive (Battery Indicator,
Yellow and coffee wire---Self-Lock/Switch on or off
Adjustable-Speed Button can be fit for this function,but your bike need to have this function. Cruise / Low Gear / High Gear /
Reversing Lamp switch / run at full speed Automatically / Handlebar Switch on or off / Low battery Keep working
Note:Do Not touch the Adjustable-Speed Button before installation!!!!Because if you touch the Adjustable-Speed Button
before installation,the inside springs may be taken out,this item can not be used.
Fit for Handle bar is 22mm or 7/8 Electric bicycle, Electric Scooter,MTV
Package Included:
1 X Handlebar with Battery Indicator
Material:Plastic PA66 GF20
Cable Length: Approx. 160cm / 62.9inch
Battery Indicator Voltage: 24V / 36V / 48V
Adjust speed Working Voltage:5V
Adjust speed Output Voltage:0.8-4.3V
Rotation angle:0°---70°
Operation temperature:-40??nbsp;~ +80??br />
Function:
Battery Indicator(Green,Red,Yellow) + Self-Lock (The Red Button) + Adjust Speed (The Black Button)
Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power
Red ,Black and White wire--- Adjust speed
Green wire----Positive (Battery Indicator,
Yellow and coffee wire---Self-Lock/Switch on or off
Adjustable-Speed Button can be fit for this function,but your bike need to have this function. Cruise / Low Gear / High Gear /
Reversing Lamp switch / run at full speed Automatically / Handlebar Switch on or off / Low battery Keep working
Note:Do Not touch the Adjustable-Speed Button before installation!!!!Because if you touch the Adjustable-Speed Button
before installation,the inside springs may be taken out,this item can not be used.
Fit for Handle bar is 22mm or 7/8 Electric bicycle, Electric Scooter,MTV
Package Included:
1 X Handlebar with Battery Indicator
