7 Inch TFT LCD Screen with HDMI Port Support VGA+2AV+ACC 1920x1080 Resolution for Raspberry Pi
Tax included.
Feature:
- 1-way VGA Input
- 2-way AV Input
- 1-way HDMI 1.1/1.2/1.3 Input
- Support 5V-24V
- 6PIN Surface
- Integrated LCD screen LED backlight driver board circuit
- Standard LVDS output support single 6, single 8, double 6, double 8 and other LVDS LCD Screens , but only support 3.3V LCD screens
- Standard button board interface, and support two-color LED indicator display
- Support TTL Output Fits 50pin TTL Screens
- Support 1920x1080 Max. Heatsink needed when over 1440x900
- Support Direct YPBPR Input through VGA
- Support reversing control, and display on AV2, reversing voltage supports voltage input within 50V
Package Included:

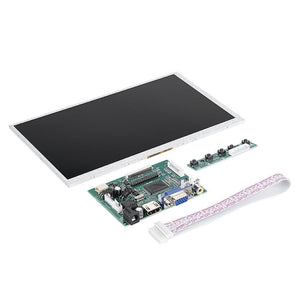

1* 7 Inch LCD Screen
1* Driver Board
