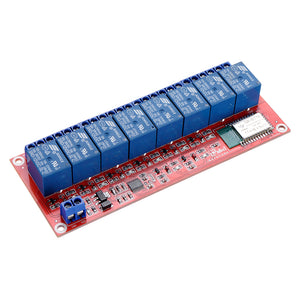

8 Channel Bluetooth Relay Module Remote Control Mobile Phone Control Relay for Smart Home

>>>Manual: Click here to open<<<

Features:



1. Through Bluetooth wireless control, it can realize the control of mobile phones or other terminals with Bluetooth devices, which is convenient for users to operate;

2. Can be widely used in the Internet of Things, smart home, smart devices and other fields;

3. Strong anti-interference ability, using diode freewheel protection;

4. The contact part of the relay adopts double-sided thick wiring, and is insulated by a physical wire slot, which can pass through a large current, safe and reliable;

5. Both input and output adopt 5.00mm high-quality wiring terminals, the wiring is more convenient, suitable for PLC control;

6. The input terminal can be set arbitrarily high and low level trigger, the control method is more flexible;

7. Each relay has a pull-in indicator light, the working status of the relay is clear at a glance;

8. Each relay output leads to two groups of normally open and normally closed electric shock, which is convenient and flexible to use;

9. With fixing screw holes for easy installation.



Specifications:



1. Dimensions: 135 x 53 x 19 mm

2. Relay contact capacity: AC250V 10A DC30V 10A

3. High level trigger current:> 10ma



Wiring:



VCC: input power supply terminal, 12V DC

GND: Input power terminal ground terminal

The output terminal is normally open, public and normally closed, and the user can operate according to the basic connection of the relay;



Operation Method:



1. Turn on the phone's Bluetooth and search for Bluetooth devices;

2. After receiving the device, click Connect and enter the default password as prompted, usually 1234 or 0000;

3. After successful connection and pairing, the above operations are not needed in the future. Then open the APP test software, you can achieve wireless control.



Package Included:



1 x 8 Channel Remote Control Bluetooth Relay Module
