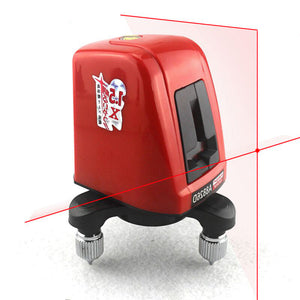

A8826D Laser Level 2 Red Cross Line 1 Point 360 Degree Rotary Self- leveling Nivel Laser Diagnostic

A8826D Laser Level 2 Red Cross Line 1 Point 360 Degree Rotary Self- leveling Nivel Laser Diagnostic

  • Save R 2,401.85
Tax included.
SKU:

AcuAngle A8826D AK435 Laser Level 2 Red Cross Line 1 Point 360 Degree Rotary Self- leveling Nivel Laser Diagnostic tools



Features:



  • 1 perpendandicular line + 1 horizontal line+1 bright spot
  • can be hung on the wall,Any highly available
  • Light and practical easy to carry
  • Retate 360 degrees of freedom
  • Automatic alignment, automatic alarm uneven product,Smart convenient, more efficient


Specifications:



  • Wave Length:635nm/red line  650nm/dot
  • Accuracy:+-2.5mm/5M
  • Wide Width:<2.5mm/5M
  • Unbalance Warning:Buzzer
  • Temperature:-5~45C
  • Dimensions:98x92x128mm
  • Light Source: Semiconductor
  • Time Of stable equilibrium: <5sec
  • Auto Self-leveling range: ± 3 °
  • Power: 2 x 1.5V AA Battery


How to use:



  • Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or if audible alarm).
  • Switch knob clockwise to open the instrument, emitting a laser beam
  • Turn the instrument, the laser beam toward goals.
  • Gently adjust knob, find work orientation.
  • When work is over, turn the switch knob counterclockwise, turn off the instrument.
  • With light point designed, provide convenience for the construction.


Package Included:



1 x A8826D Laser Level ( No including battery )
