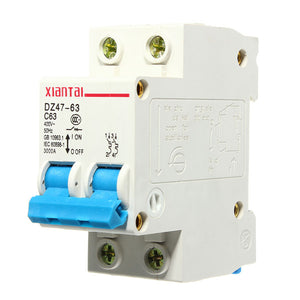

AC 400V 30A 2P Plastic Air Switch Miniature Circuit Breaker
Tax included.
Description:
AC 400V 30A 2P Plastic Air Switch Miniature Circuit Breaker
Specification:
Features:
1.If the severe voltage drops or power outage, the armature is released leaving the main contacts open.
2.If severe overload or short-circuit fault, the main circuit in series with the coil will produce a strong electromagnetic attraction to attract the armature and the top lock down hook, the main contacts open.
3.When the supply voltage returns to normal, we must re-closing after to work, to achieve a voltage protection.
Package Included:
1×Miniature Circuit Breaker
More Details:
AC 400V 30A 2P Plastic Air Switch Miniature Circuit Breaker
Specification:
Product Name : Miniature Circuit Breaker
Shell Material : Plastic
Model No. : DZ47-63 C63
Rated Voltage : AC 400V-50HZ
Rated Current : 30A
Rated Breaking Capacity : 3000A
Number of Poles : 2P
Overall Size (Approx.) : as the picture shown(approx)
Weight : 169g
Features:
1.If the severe voltage drops or power outage, the armature is released leaving the main contacts open.
2.If severe overload or short-circuit fault, the main circuit in series with the coil will produce a strong electromagnetic attraction to attract the armature and the top lock down hook, the main contacts open.
3.When the supply voltage returns to normal, we must re-closing after to work, to achieve a voltage protection.
Package Included:
1×Miniature Circuit Breaker
