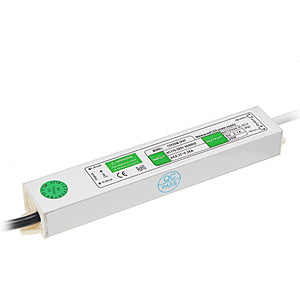

AC110V-240V to DC12V 24W 2A LED Waterproof Switching Power Supply 181*30*20mm
Tax included.
More details: Click here to open
Input Electrical Characteristics Overview:
Output Electrical Characteristics Overview:
Protection:
DC output Over Voltage Protection:
DC Output Short Circuit Protection:
Input Electrical Characteristics Overview:
| Input voltage range | 90-264VAC |
| Normal voltage range | 100-240VAC |
| Frequency range | 47-63Hz |
| Max input ac current | <1A (IN AC90V) |
| Inrush current (cold start) | 30A |
| Efficiency(full load) | 85%≥(IN AC230V) 81%≥(IN AC120V) |
| Leakage Current | <0.5mA |
| Standby Power Loss | ≤1W |
Output Electrical Characteristics Overview:
| Output Voltage | Regulation | Min. current | Rated current |
| 12.00 | ±5% | 0 | 2A |
Protection:
DC output Over Voltage Protection:
| Output Voltage | Max. Over Voltage | Comments |
| 12.00 | 18V | Shutdown |
DC Output Over Current Protection:
| Output Voltage | Over Current | Comments |
| 12.00 | 2.2-3.5A | Shutdown |
DC Output Short Circuit Protection:
| Output Voltage | Comments |
| 12.00 | Shutdown |
Humidity:
Operating Humidity: From 10% to 90% relative humidity (non-condensing).
Store Humidity: From 5 to 95% relative humidity (non-condensing).
Package includes:
1 x Power supply
Package includes:
1 x Power supply
