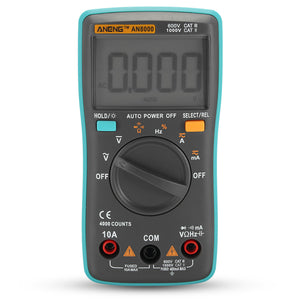

AN8000 Digital Multimeter Voltmeter Ammeter Ohmmeter Volt AC DC Ohm Tester Meter

Tax included.

Features:

Auto ranges

550V protection in Resistance,Capacitance and Frequency ranges

Large LCD display,MAX display 4000 counts

Sample rate: 3 times per second

Backlight

Data hold

Relative measurement

Polarity identification

Low voltage indication

10A high current and low current measurement

Auto power off

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Diode and Continuity Testing,Frequency and duty cycle.

Specifications:

♦Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4)

♦DC volts: 400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)

♦AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)

♦DC current: 40mA/400mA(±1.0%+4),10A(±1.5%+4)

♦AC current: 40mA/400mA/10A(±2.0%+4 ,50-200Hz)

♦Resistance: 400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)

♦Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)

♦Duty cycle: 0.1% to 99.9%(±0.08%+2)

♦Measurement mode: mode

♦Over range indication: OL

♦Working environment: 0~40?? relative humidity< 80%

♦Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included)

♦Frequency: 1Hz to 10MHz

♦Capacitance : 10pF to 4000uF

♦AC volts: 0.1mV to 750V

♦DC volts: 0.1mV to 1000V

♦AC current: 0.1uA to 10A

♦DC current: 0.1uA to 10A

♦Resistanc: 0.1Ω to 40MΩ

♦Duty cycle: 1% to 99%

♦Product size: approx. 130*65*30mm

Package includes:

1 x Digital Multimeter

2 x Test Lead

1 x Storage Bag

1 x User Manual

1 Set Multifunction Digital Multimeter Probe Test Leads / Alligator Clip

Detail pictures:
