Astro Pi Sense HAT Sensor Expansion Board Integrated Temperature & Humidity Sensor for Raspberry Pi 3B+
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Introduction:

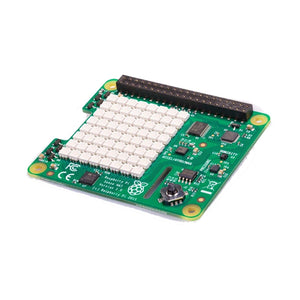

I am a Raspberry Pi original sensor expansion board that integrates gyroscopes, accelerometers, magnetometers, barometers, and temperature and humidity sensors, as well as onboard peripherals such as 8x8 RGB LED matrix and five-way rocker.
You prepare the Raspberry Pi, and then take me, you can create your own Astro Pi. Since then, the development of various types of games and applications, and even space exploration experiments, are no longer a problem.
Parameter:
??Gyroscope-angular-rate sensor
± 245/500/2000 dps
??Accelerometer-Linear acceleration sensor
± 2/4/8/16 g
??Magnetometer-Magnetic sensor
± 4/8/12/16 gauss
??Barometer
Measuring range: 260 ~ 1260 hPa
Measurement accuracy (at room temperature): ± 0.1 hPa
??Temperature sensor
Measurement accuracy: ± 2 ° C
Measuring range: 0 ~ 65 ° C
??Humidity sensor
8 ? 8 RGB LED matrix
Measurement accuracy: ± 4.5% rH
Measuring range: 20% ~ 80% rH
Measurement accuracy (temperature): ± 0.5 ° C
Measuring range (temperature): 15 ~ 40 ° C
??Five-way rocker
Note:This product does not include the Raspberry Pi in the schematic
Package Included:
Sense HAT ? 1
40Pin straight female ? 1
Copper Pillar ? 1
