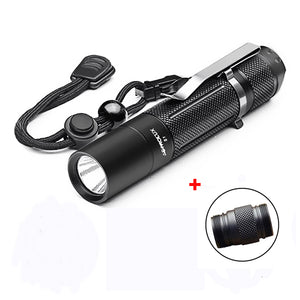

Astrolux S1 XPL 1600LM 7/4modes EDC LED Flashlight 18650/18350
Tax included.
Specification:
More Information:
A6 Firmware click here for more details(approved by toykeeper)
Package included:
1 x Astrolux S1 XPL EDC LED Flashlight
1 x 18350 extention tube
1 x Deep Carry Pocket Clip
1 x Gift Box
1 x Extra o-rings
1 x Extra button
Product review from professional forums:
Candlepowerforums
BLF Forum
Recommended:
Features:
· Utilizes XPL LED
· Maximum output of 1600 lumens
· High efficiency constant current circuit
. Hidden battery check
· Direct access to ultra-low and turbo output
. User selectable "4 or 7 evenly-spaced modes".(Moon to High)
. User selectable mode memory (always starts on Moon without mode memory but easily reverses to Turbo with a click)
. Fast PWM for lower regulated modes
· Reverse polarity protection prevents damage from an incorrectly inserted battery
· Toughened ultra-clear mineral glass with anti-reflective coating
· Constructed from aero grade aluminum alloy
· HAIII military grade hard-anodized
· Waterproof in accordance with IPX-8 (2 meters submersible)
· Impact resistant to 1 meters
· Tail stand capability
. Moon capable
,
,
,
,
,
,
,
,
| Product name: | Astrolux S1 XPL EDC LED Flashlight |
| Brand: | Astrolux |
| Model: | S1 |
| Emitter Type: | XPL |
| Circuit Driver: | A17DD-L FET+1 Driver (by wight) |
| Light Tint: | 3D (5000K), 1A (6500K), 5A(4000K) 3D warm light color ,1A cool white,5A very yellow light |
| Material: | Constructed from aero grade aluminum alloy |
| Mode: | Group 1:Moon-Low-Med1-Med2-High1-High2-Turbo(Short press<0.5s) Group 2: Low,Med,High,Turbo (Short press<0.5s) + Moon-Turbo-Tactical Strobe-Battcheck-Bike Flasher (Medium press 0.5s-1.5s) |
| Battery Configurations: | 1 x 18650 /18350 Battery (not included) (do not use NCR18650B ) |
| Switch Type: | clicky |
| Switch Location: | tail of the flashlight |
| Impact Resistant | 1 meter |
| Max Output: | 1600lumens (max) (use 18650 protected power battery) |
| Working Voltage: | 2.8-4.35v |
| Lens: | Toughened ultra-clear mineral glass with anti-reflective coating |
| Reflector: | Orange Peel Reflector |
| Carrying Clip | included |
| Waterproof: | IPX-8 waterproof 2 meters |
| Color: | black |
| Weight: | 80g without battery |
| Size: | 120mm x 24mm(length x body diameter) |
More Information:
- First special-edition with a direct-drive FET, so it has the
brightest turbo mode you can get.
- First special-edition with a regulated lower-power second channel
for stable and efficient low modes.
- True moon mode.
- Up to 1600 lumens from a single emitter in a small tube light (with
the right battery, and a spring bypass mod). Closer to 1400 lumens
with no mods and lower-amp batteries.
- User-toggle-able mode memory.
- User-toggle-able mode groups.
- Well-spaced visually-linear output modes.
- Includes some hidden modes for those who want them.
- Battery check mode!
- First clicky-switch stock light with both forward and backward mode
navigation in a single tap (short/medium press).
- With mode memory off, the user can access 4 different modes
(including the highest and lowest) within 1 second.
- Fast PWM so the pulsing won't be visible.
- The firmware and the driver designs are available for anyone who
wants to modify them.
brightest turbo mode you can get.
- First special-edition with a regulated lower-power second channel
for stable and efficient low modes.
- True moon mode.
- Up to 1600 lumens from a single emitter in a small tube light (with
the right battery, and a spring bypass mod). Closer to 1400 lumens
with no mods and lower-amp batteries.
- User-toggle-able mode memory.
- User-toggle-able mode groups.
- Well-spaced visually-linear output modes.
- Includes some hidden modes for those who want them.
- Battery check mode!
- First clicky-switch stock light with both forward and backward mode
navigation in a single tap (short/medium press).
- With mode memory off, the user can access 4 different modes
(including the highest and lowest) within 1 second.
- Fast PWM so the pulsing won't be visible.
- The firmware and the driver designs are available for anyone who
wants to modify them.
