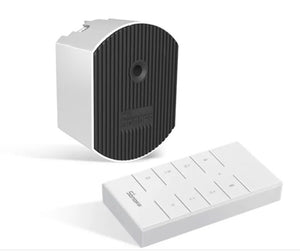

Smart Dimmer Switch DIY Smart Home Mini Switch Module Adjust Light Brightness APP/Voice/RM433 RF Remote Control Work with Alexa Google Home
Description:
Due to popular demand, SONOFF eventually releases a new D1 smart dimmer switch. It excellently improves the lighting system in your home with different brightness levels. Turn on/off, brighten and dim the incandescent light bulbs and dimmable LED lights through the RM433 remote controller, eWeLink APP, Alexa or Google Home. The newly added sunrise and sunset mode are available in smart scene to activate your light when sunsets and inactivate it when sunrises. Amazingly, timing schedule and brightness setting can be enabled simultaneously in smart scene. It means that you can schedule the bed-room light to automatically turn on at 40% brightness at 7:00 AM and turn off at 100% brightness at 7:00 PM. There is a base for the RM433 remote controller which is used to be directly replaced your light switch and installed into the 86 type mounting box, everything looks perfect. Besides, the dimmer can be installed into the EU and US type mounting box.
The D1 smart dimmer switch is capable of remotely accessing the smart features to automate your house. You can set programmed schedules, voice control, control a group of devices, adjust light brightness and share the light to your family to control and dim together.
Specifications:
Model: D1
Max. current: 1A
Input: 100-240V AC 50/60Hz
Output: 100-240V AC 50/60Hz
Incandescent bulb: 200W
Dimmable LED: 150W
RF band: 433.92Mhz
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
Enclosure material: PC V0
Dimension: 62*47*32.5mm
Certification: CE, FCC
Downloads:
User Manual
Quick Installation Guide
----------------------------------------------------------------------
Description:
The RM433 remote controller is an advanced version for 4-button RF with 433MHz. Designed with 8 buttons to perform various functions in running on different types of devices.
Such as fan speed adjustment, brightness setting, etc.
The simple and stylish look gives any surface a beautiful decor when it is stored on the wall.
Strong compatibility. It can be paired to control SONOFF BASICRF, RFR3, Slampher, iFan03, D1, 4CHProR2, TX series, 433 RF Bridge and other devices supporting 433 communication protocol and other devices supporting 433 communication protocol(Fixed Code).
Pairing with your devices is extremely simple and takes no time at all, simply press any button on the remote controller to pair with the device you need to control. Quick installation. Can match the base to be stored on the wall with double-sided tapes or screws.
RM433 Feature:
Model: RM433
Band: 433MHz
Size: 86x45x12.5mm
Power supply: DC12V(model:27A)
Material: PC V0
User Manual
Base Feature:
This Base is used for SONOFF RM433 reomte controller, can match the remote control to be stored on the wall with double-sided tapes or screws.
Base Size: 86x86x15.8mm
Package included:
1 x RM433 remote controller
1 x RM433 Base
Package included:
1 x D1 Smart Dimmer Switch
1 x RM433 Remote controller and base:
