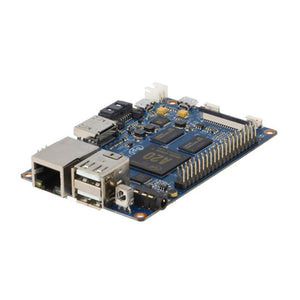

Banana Pi BPI M1 Plus A20 ARM Cortex -A7 Dual-Core 1.0GHz CPU 1GB DDR3 Single Board Computer Development Board Mini PC Learning Board
Tax included.
Introduction:
Banana PI BPI-M1+ is an Open Source hardware platform.
Banana PI a dual core, Android 4.4,linux system support product which is much betterthan the Raspberry Pi.
BPI-M1+ have SDIO WiFi module on board and have 40 PIN as rasbperry pi.
The BPI-M1+ hardware runs Android, Debian Linux, Ubuntu Linux,OpenSuse linux and images that run on the Raspberry Pi and Cubieboard.
Banana PI BPI-M1+ has a Gigabit Ethernet port and a SATA Socket. It can run with Android 4.4 smoothly. The size of Banana PI BPI-M1+ is about the same size as a credit card,
It can easily run games as it supports 1080P high definition video output. The GPIO is compatible with Raspberry Pi 2 and can run Raspberry Pi images directly.
Key features:
·Allwinner A20 Dual-core 1.0GHz CPU
·Mali-400 MP2 with Open GL ES 2.0/1.1.
·1 GB DDR3 memory.
·Wifi &BT support onboard
·1x SATA interface.
·1x Gigabit LAN
·1x USB otg and 2x USB 2.0
·1X MIC
·AV out
·HDMI out
·IR
·CSI camera interface
·DSI display interface
·40 PIN gpio
·3.7V lithium battery interface
Banana PI BPI-M1+ is an Open Source hardware platform.
Banana PI a dual core, Android 4.4,linux system support product which is much betterthan the Raspberry Pi.
BPI-M1+ have SDIO WiFi module on board and have 40 PIN as rasbperry pi.
The BPI-M1+ hardware runs Android, Debian Linux, Ubuntu Linux,OpenSuse linux and images that run on the Raspberry Pi and Cubieboard.
Banana PI BPI-M1+ has a Gigabit Ethernet port and a SATA Socket. It can run with Android 4.4 smoothly. The size of Banana PI BPI-M1+ is about the same size as a credit card,
It can easily run games as it supports 1080P high definition video output. The GPIO is compatible with Raspberry Pi 2 and can run Raspberry Pi images directly.
Key features:
·Allwinner A20 Dual-core 1.0GHz CPU
·Mali-400 MP2 with Open GL ES 2.0/1.1.
·1 GB DDR3 memory.
·Wifi &BT support onboard
·1x SATA interface.
·1x Gigabit LAN
·1x USB otg and 2x USB 2.0
·1X MIC
·AV out
·HDMI out
·IR
·CSI camera interface
·DSI display interface
·40 PIN gpio
·3.7V lithium battery interface
| Hardware spec | |
| CPU | A20 ARM Cortex -A7 Dual-Core |
| GPU | ARM Mali400MP2Complies with OpenGL ES 2.0/1.1 |
| Memory | 1GB DDR3 |
| Network | 10/100/1000 Ethernet |
| WIFI&BT | Wifi & BT 4.0 support onboard |
| Video Input | A CSI input connector allows for the connection of a designed camera module |
| Video Outputs | HDMI, CVBS, LVDS/RGB |
| Audio Outputs | 3.5mm jack and HDMI |
| Power Source | 5V/2A via Micro USB (DC in only) and / or Micro USB OTG |
| USB 2.0 ports | 2(direct from Allwinner A20 chip) |
| GPIO | GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND |
| LED | Power Key & 8P8C |
