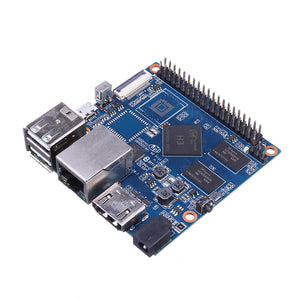

Banana Pi BPI-M2+ EDU H3 Quad-core Cortex-A7 H.265/HEVC 4K 512MB DDR3 Super Mini Single Board Computer Development Board Mini PC Learning Board
Tax included.
Description:
- Banana PI BPI-M2+ Edu is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi, use Allwinner H3 chip on
board. and mini size only 65mm*65mm.
- Banana Pi BPI-M2+ Edu series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.
- Banana PI BPI-M2 Edu hardware: 1Ghz ARM7 quad-core processor, 512MB DDR3 SDRAM.
- Banana PI BPI-M2+ Edu with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game, it supports 1080P high
definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian Image download from our website.
Note:
Banana Pi BPI-M2+ Edu does not support sata port, so you need use USB for hardisk
Banana pi BPI-M2+ Edu does not support LCD interface
Package included:
1 x BPI-M2+ Edu Board
- Banana PI BPI-M2+ Edu is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi, use Allwinner H3 chip on
board. and mini size only 65mm*65mm.
- Banana Pi BPI-M2+ Edu series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.
- Banana PI BPI-M2 Edu hardware: 1Ghz ARM7 quad-core processor, 512MB DDR3 SDRAM.
- Banana PI BPI-M2+ Edu with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game, it supports 1080P high
definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian Image download from our website.
| Hardware spec | |
CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
| Memory | 512MB DDR3 (SDRAM shared with GPU) |
| Storage Support | MicroSD card (Max. 64GB) |
| Onboard Network | 10/100/1000 Ethernet RJ45 Realtek RTL8211E |
| Video In | CSI connector for 8-bit YUV42 CMOS sensor and capture of 1080p@30fps |
| Video Out | HDMI |
| Audio Out | HDMI |
| Power Source | DC 5V @ 2A (4.0mm/1.7mm barrel plug - centre positive) |
| USB Ports | 2x USB 2.0 |
| Buttons | Power Button, Reset Button, Uboot Button |
| GPIO | 3 pin UART, CSI, 40 pin GPIO |
| LED | Red LED |
| OS | Android, Raspbian, Ubuntu, OpenSUSE, Debian, Bananian |
| Dimensions | 65mm * 65mm |
| Weight | 48g |
Note:
Banana Pi BPI-M2+ Edu does not support sata port, so you need use USB for hardisk
Banana pi BPI-M2+ Edu does not support LCD interface
Package included:
1 x BPI-M2+ Edu Board
