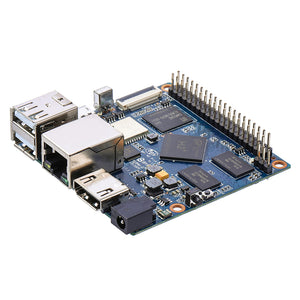

Banana PI BPI-M2+ H2+ Quad-core Cortex-A7 H.265/HEVC 4K 1GB DDR3 8GB eMMC With WIFI & bluetooth Onboard Single Board Computer Development Board Mini PC Learning Board
Tax included.
Introduction:
Banana PI BPI-M2+ is the open source hardware platform, use Alliwnner H2+ (option H3 chip and H5 chip ) chip on board. and mini size only 65mm*5mm, PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT 4.0 moodule on board.Gigabit ethrnet.
BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI,it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ .
Banana Pi BPI-M2+ does not support sata port, so you need use USB for hardisk.
Key features:
- Allwinner H2+ Quad-core 1.2GHz Cortex-A7 ( option H3 / H5 ).
- 1GB DDR3
- 8GB eMMC onboard
- HDMI out
- WiFi and bluetooth onboard
- 10/100/1000Mbps Ethernet Port
- CSI camera interface
Click here to know more about BPI-M2+ Series(takes H3 chip version as example)
Package included:
1 x BPI M2+ H2+ Board
Banana PI BPI-M2+ is the open source hardware platform, use Alliwnner H2+ (option H3 chip and H5 chip ) chip on board. and mini size only 65mm*5mm, PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT 4.0 moodule on board.Gigabit ethrnet.
BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI,it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ .
Banana Pi BPI-M2+ does not support sata port, so you need use USB for hardisk.
Key features:
- Allwinner H2+ Quad-core 1.2GHz Cortex-A7 ( option H3 / H5 ).
- 1GB DDR3
- 8GB eMMC onboard
- HDMI out
- WiFi and bluetooth onboard
- 10/100/1000Mbps Ethernet Port
- CSI camera interface
| Hardware spec | |
| CPU | H2+ Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0 |
| Memory | 1GB DDR3 (shared with GPU) |
| Flash | 8GB eMMC flash onboard |
| Network | 10/100/1000 Ethernet |
| WIFI&BT | SDIO AP6212 for Wifi &BT 4.0 (option AP6181 AP6335) |
| Video Input | A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps |
| Video Outputs | Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS |
| Audio Output(s) | HDMI |
| USB port | two USB 2.0 HOST, one USB 2.0 OTG |
| mini PCIE | 1 mini pcie interface & 1 pcie pin define interface |
| IR | IR input on board |
| GPIO | 40 Pins Header,compatible with Raspberry Pi B+ |
| LED | Power led & Status led |
| Power Source | 5V/2A DC input can supply power, but USB OTG input don’t supply power |
| OS | Android, Ubuntu, Debian, Raspberry Pi Image |
Click here to know more about BPI-M2+ Series(takes H3 chip version as example)
Package included:
1 x BPI M2+ H2+ Board
