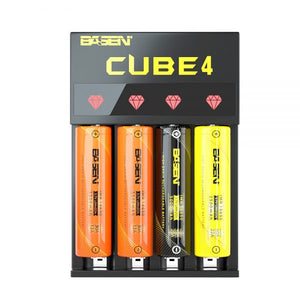

BASEN CUBE 4 Slots Battery Charger 18500/14650/16650/26650/21700 Charger With US/EU Plug
Tax included.
Specification:
Features:
Capable of charging 4 Li-ion batteries simultaneously.
Monitors and charges each slot independently.
Automatic adoption among three charging modes(CC,CV,PC).
Reverse polarity protection and short circuit protection.
Thermal protection during the charging process.
Over-discharged PCB battery activation.
Made from fire resistant, flame retardant PC materials.
Optional heat dissipation design.
Certificated by RoHS,CE,UL and FCC.
| Brand | BASEN CUBE |
| Input Voltage | AC 100-240v50/60Hz 0.25(max) 10W |
| Output Voltage | 4.2V±1% |
| Output Current | 600mA*4 |
| Compatible with | Li-ion/IMR: |
| Dimension | Width:68mm Length:133mm Height:29mm |
| Weight | 146g |
Features:
Capable of charging 4 Li-ion batteries simultaneously.
Monitors and charges each slot independently.
Automatic adoption among three charging modes(CC,CV,PC).
Reverse polarity protection and short circuit protection.
Thermal protection during the charging process.
Over-discharged PCB battery activation.
Made from fire resistant, flame retardant PC materials.
Optional heat dissipation design.
Certificated by RoHS,CE,UL and FCC.
Operation Instructions:
Power on: Connect the Cube 4 to an external power source with it’s charging cord.
Battery Placement: Put batteries in each independence slot according to the polar mark on the charger.
Battery identification: All four LED indicators will be green when power on, put batteries into charger, related LED indicator turn to red showing charging mode, and turn back to green when related battery gets full charged or is moved.
Other features: The Cube 4 has reverse polarity protection imported.
Package included:
1 x Battery Charger
1 x EU/US plug
