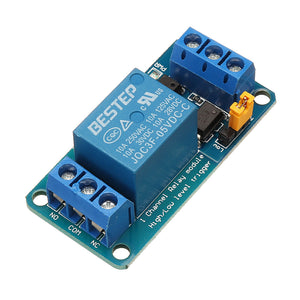

BESTEP 1 Channel 5v Relay Module High And Low Level Trigger For Arduino
Tax included.
Description:
Maximum load: AC 250V/10A, DC 30V/10A.
The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.
Working voltage: 5V.
Every channel of the module can be set high or low level trigger by jumper.
Fault tolerant design, even if the control line is disconnect, the relay will not act.
Power indicator (green), 1 relay status indicator (red).
The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.
Module size: 50mm x 25mm x 18.5mm (length x width x height).
There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.
1. The 3-pin is the high level trigger selection.
Module interface:
1, DC+: Connect the power positive pole.
2, DC-: Connect the power negative pole.
3, IN1: Can be controlled by high or low level.
Relay output: there is a 3 wire interface, all interfaces can be directly connected to lead to facilitate user use.
1, NO1: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.
2, COM1: Relay common interface
3, NC1: Relay normal close, short connected with COM before pulling inand suspended after pulling in.
High and low level trigger option:
1. The 3-pin is the high level trigger selection.
2. When COM is short connected with LOW, the corresponding relay is LOW level trigger, while when COM is short connected with high end is high level trigger.
Package Included:
1 x 1 Channel 5V Relay Module
1 x 1 Channel 5V Relay Module
