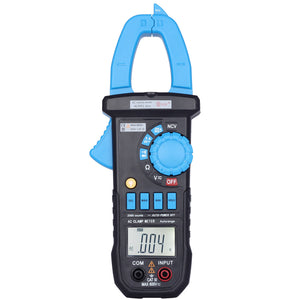

Bside ACM01 Plus Auto Range Manual Range Digital AC Current Clamp Meter Multi Meters

Bside ACM01 Plus Auto Range Manual Range Digital AC Current Clamp Meter Multimeter Diode Continuity Test with Back light NCV Function

Features:


• Conform to the IEC1010-1 standard CAT III 600V.

• The over-molding rubber case protects the meter to be stronger.

• SMT application.

• Display: 1999 counts.

• NCV function.

• MAX. diameter for conductor: 26mm.

• Back light and Clamp lighting.

• Auto/Manual range.

• Maximum value measuring function.

• Data hold.

• Auto power off(about 15 minutes).

• Battery low indication.



Specifications:


• DCV: 200mV/2V/20V/200V±(0.8%+2), 600V±(1%+2)

• ACV: 2V/20V/200V±(1%+5), 600V±(1.2%+5)

• AC current: 2A/20A±(3%+10), 200A±(2.5%+10), 600A±(1.5%+5)

• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(1.2%+2), 20MΩ±(2.0%+5)

• Diode test.

• Continuity test(Build-in buzzer when resisitance is less than 60Ω).

• Power: AAA (1.5V) x 3 ( NOT include in the package because post office forbid to send)

Package Included:


1 x Bside ACM01 Plus Clamp Meter

1 x Set of Test Leads

1 x Carry Bag
1 x English User Manual

Details pictures:
