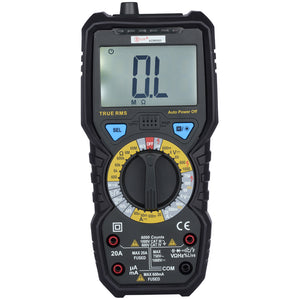

BSIDE ADM08D 6000 Counts True RMS Digital Large LCD Multimeter with Temperature Measurement
Tax included.
Description:
BSIDE ADM08D 6000 Counts True RMS Digital Large LCD Multimeter with 1000V AC/DC Voltage Triode Duty Datio Test Temperature Measurement
This digital multimeter is designed and manufactured in accordance with IEC-61010 safety requirements on electronic measuring meters and hand-held digital multimeters.
BSIDE ADM08D 6000 Counts True RMS Digital Large LCD Multimeter with 1000V AC/DC Voltage Triode Duty Datio Test Temperature Measurement
This digital multimeter is designed and manufactured in accordance with IEC-61010 safety requirements on electronic measuring meters and hand-held digital multimeters.
It is compliant with the requirements on 600V CAT IV 1000V CAT. III and pollution degree 2 as contained in IEC61010.
This meter is a hand-held digital multimeter with RMS. It is equipped with a large screen LCD with backlight that facilitates users in recognizing readings. Moreover, it provides overload protection and Low Battery indications. Anyhow, it is an ideal multi-functional meter suitable for professionals, factories, schools, enthusiasts, or homes.
Features:
6000 counts Maximum display.
True RMS.
Low voltage indication.
Auto power off.
LIVE (line of fire).
Diode test.
On-off test.
Temperature test.
Backlight.
Flashlight.
Non contact voltage detection.
Features:
6000 counts Maximum display.
True RMS.
Low voltage indication.
Auto power off.
LIVE (line of fire).
Diode test.
On-off test.
Temperature test.
Backlight.
Flashlight.
Non contact voltage detection.
Specifications:
DCV: 600mv/6v/60v/600v/1000v ±0.5%+3
ACV: 6v/60v/600v/1000v ±0.8%+3
DCA: 60uf/6mA/60mA/600mA ±0.8%+3 20A ±1.2%+3
ACA: 6mA/60mA/600mA ±1.0%+3 20A ±1.5%+3
Resistance: 600/6k/60k/600k/6M ±0.8%+3 60MΩ ±1.2%+3
Capacitance: 6nf/60nf/600nf/6uf/60uf/600uf/6MF ±4.0%+3 100MF ±5.0%+3
Frequency: 60/600/6k/60k600k/6m/10Mhz ±1.0%+3
Duty ratio: 5%-95% ±2.0%+3
Temperature: -20~1000??/-4 ~1832?? ±1.0%+3
Triode (Hfe ): 0-1000 ±1.0%+3
Ambient temperature: 0~40??/div>
Storage environment temperature: -10~60??/div>
Temperature coefficient: 0.1´accuracy/ OC ( <18 OC or >28 C )
Allowable max voltage between terminal to be measured and ground: 1000V DC or 750V AC RMS.
Protective tube-based protection: mA position: protective tube FF 630mA/250V; A position: protective tube FF 20A/250V.
Conversion rate: approximately 3 times per second.
Monitor: 6000 counts LCD display. Automatically display unit symbols according to different function positions.
Over-range indication: LCD screen displays "OL".
Battery Low indication: when the battery voltage is lower than the normal working voltage, will show up.
Input polarity indication: “-will automatically appear.
Power supply: 4 x 1.5V AA battery (Not included)
Dimensions: 184.5mm (l) x 88 mm (w) x 39mm (h).
Weight: 420g
Package Included:
1 x BSIDE ADM08D Digital multimeter
1 x Test probes
1 x Instruction manual
1 x Temperature probe
1 x Gift Box
