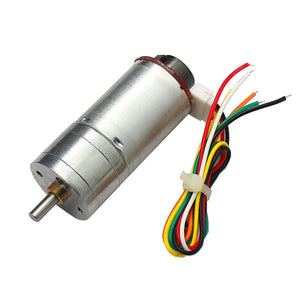

CHIHAI MOTOR GM25-370 DC Gear Motor 6V 100/210/300RPM Encoder Motor
Tax included.
Description:
CHIHAI MOTOR 6V 100/210/300RPM Encoder Motor DC Gear Motor
Fixed Support Mounting Bracket for This Encoder Motor: Product ID: 1044065
Specification:
Brand: CHIHAI MOTOR
Model: GM25-370
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm
Encoder motor end 11 signals
Terminal connection length 20cm
Outline Drawing:
Note:
Please note that the package includes one motor only.
100/210/300RPM is available.
Package Included:
1 x Encoder Motor
More Details:
CHIHAI MOTOR 6V 100/210/300RPM Encoder Motor DC Gear Motor
Fixed Support Mounting Bracket for This Encoder Motor: Product ID: 1044065
Specification:
Brand: CHIHAI MOTOR
Model: GM25-370
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm
Encoder motor end 11 signals
Terminal connection length 20cm
| Rated Voltage | DC 6V | DC 6V | DC 6V |
| No-load Speed | 100RPM 0.13A | 210RPM 0.13A | 300RPM 0.1A |
| Max Efficiency | 1.0kg.cm/80rpm/1.7W/0.5A | 2.0kg.cm/170rpm/2.0W/0.60A | 0.7kg.cm/245rpm/1.2W/0.4A |
| Max Power | 3.0kg.cm/55rpm/2.8W/1.0A | 5.2kg.cm/110rpm/3.1W/1.10A | 1.8kg.cm/160rpm/2W/0.8A |
| Stall Torque | 6.5kg.cm 3.0A | 10kg.cm 3.2A | 3.6kg.cm 2.7A |
| Retarder Reduction Ratio | 1 : 75 | 1 :34 | 1 : 20 |
| Hall Resolution | 11 x Ratio 74.83 = 823.1PPR | Hall x Ratio 34.02 = 341.2PPR | 11 x Ratio 20.4 = 224.4PPR |
Outline Drawing:
Note:
Please note that the package includes one motor only.
100/210/300RPM is available.
Package Included:
1 x Encoder Motor
