CN3791 MPPT Solar Panel Voltage Regulator Controller 6V 9V 12V 1 Cell Lithium Battery Charge Solar Panel Charger Board Controller Module
Tax included.
Description:
This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries. This MPPT solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging!
Solar maximum power point tracking (MPPT) is to ensure that the light intensity change, photovoltaic cells output maximum power, to make full use of solar energy. In general, need to use a switch mode DC - DC converter to realize MPPT function, keep the output voltage and charging current product maximize (output).
The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. Each Solar Charger comes equipped with a CN3791 power tracking battery charging circuit and pre-installed four 2-pin JST/PH2.0 connectors.
Default we have set the holding voltage for MPPT. So we have 3 version for the input voltage 6V/9V/12V(for Solar Panel working voltage 6V/9V/12V), very suitable for the application of the input voltage and battery voltage difference is bigger.
Features:
Trickle charging of deeply discharged batteries
Automatic recharge
Charge status and charge end status indication
Soft start
Battery overvoltage protection
Solar panel maximum power point tracking
Complete charge management for single-cell lithium batteries
Specifications:
Input voltage: select the corresponding module according to the nominal voltage of the solar panel (6V/9V/12V)
Output voltage: nominal 3.7V full charge voltage 4.2V lithium battery
Interface: 2-pin JST connectors (or PH2.0)
Max Charging current: 2A
PWM switching frequency: 300KHz
Charging voltage: 4.2V ± 1%
Working environment temperature: -40 ° C to +85 ° C
Size:45X20X9.5mm
Note:
1.If the CN3791 MPPT Solar Charger is 9V version, you must use the Solar panel working Voltage is 9V.
2.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:

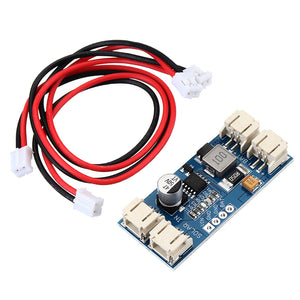

1 x CN3791 MPPT Solar Panel Regulator Module 6V/9V/12V
