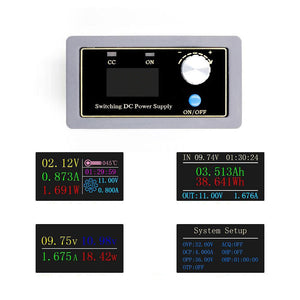

CNC DC DC Buck Boost Converter CC CV 0.5-30V 4A Step Up Down Adjustable Regulated Power Supply Module for Solar Battery Charging

Specifications:

Input voltage :5V--32V
Output voltage :1.8--32V
Frequency: less than 100KHz
Output current: general heat dissipation 3A, enhanced heat dissipation can be up to 4A,
Output power :36W
Features:
??nbsp;Color screen display ??nbsp;Minimal operation ??nbsp;Software protection ??Hardware protection

Parameter Description:

1.  4A NC lifting voltage adjustable power supply parameters are described in the following table:

2. The protection mechanism parameters are described in the following table:

??current limit indicator; ??switch indicator; ??output voltage; ?? output current; ??output power; ?? Temperature; ?? Run time;?? Digitally set output voltage;?? NC set output current;

Instructions:

In this interface, short press the [ON / OFF] key to realize the switch function, and long press to enter the setting interface. Rotate the [EC11] page to switch, press and hold the [EC11] coding button to switch the voltage and current of the NC, and the switched setting will change the font color from blue to white. Press [EC11] briefly to clear the running time.

??nbsp;input voltage; ??running time; ??output capacity; ??output energy; ??output voltage; ??output current

Instructions:

In this interface, short press the [ON / OFF] key to realize the switch function, and long press to enter the setting interface. Turn the [EC11] page to switch, and short press [EC11] to clear the running time.

??nbsp;input voltage; ??output voltage; ??output current; ??output power;

Instructions:

In this interface, short press the [ON / OFF] key to realize the switch function, and long press to enter the setting interface. Rotate the [EC11] page to switch.

??Over-voltage protection; ??Over-current protection; ??Over-powe pro-tection; ??Over-temperature protection; ??Power-on default settings; ??Over-time protection switch; ??Over-time protection

Instructions:

?? Output overvoltage protection (OVP): 1.8 ~ 32V custom adjustment, default 32V;

?? Output overcurrent protection (OCP): 0 ~ 4A custom adjustment, default 4A;

?? Output over powe protection (OPP): 0 ~ 40W custom adjustment, default 40W;

?? Output over-temperature protection (OTP): 70 ~ 120 ??custom adjustment, default off

?? Power-on default (ACQ): off by default;

?? Output time-out protection (OHP): 0 ~ 100h custom adjustment, closed by default; shortly press the [ON / OFF] key in this interface to realize the switch function, long press to exit the setting interface. Turn [EC11] to switch the setting. The font color currently set will change from blue to white. Short press to enter the bit setting.

Button function table
