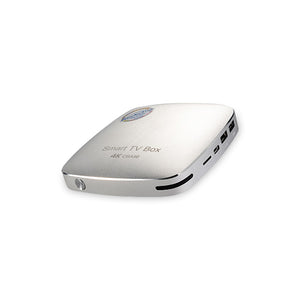

CSA96 ROCKCHIP RK3399 3GB RAM 32GB ROM TV Box Silver
Tax included.
CSA96 Rockchip RK3399 Octa Core 3GB DDR3 RAM 32GB ROM Android 6.0 2.4G 5.0G WiFi 1000M Gigabit LAN USB3.0 Type-C 4Kx2K 60fps bluetooth 4.0 H.265 HEVC VP9 Android TV Box Mini PC Silver
Features:
,
,
,
,
,
,
,
Features:
CPU: ROCKCHIP RK3399, Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU Frequency is over 2.0GHz (Big cluster)
GPU: Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, Supports AFBC (ARM Frame Buffer Compression)
RAM: 3G DDR3
ROM: 32G EMMC Flash
OS: Android 6.0 OS
Ethernet: 1000M
Video Decode: Multi-Media 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps
Ethernet: 1000M
WIFI: 2.4G+5.8GWIFI, AP6225 WIFI module, (802.11 b/g/n and 802.11 a/c)
bluetooth: BT4.0
USB Port: USB2.0 x 1, USB3.0 x 1, Dual USB 3.0 with type-C supportedVideo Decode: Multi-Media 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps
Specifications:
Package Included:
1 x CSA96 RK3399 3G/32G TV Box
1 x HDMI Cable
1 x Remote Control
1 x Air Mouse
1 x Power Adapter
1 x User Manual
| General | |
| Android OS | Android 6.0 OS |
| CPU | ROCKCHIP RK3399, Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU Frequency is over 2.0GHz (Big cluster) |
| GPU | Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, Supports AFBC (ARM Frame Buffer Compression) |
| RAM | 3G DDR3 |
| Memory size | 32G EMMC Flash |
| Language | Chinese, English...Multi-Language support |
| Storage Extension | Support MicroSD(TF), Up to 128GB |
| WIFI | 2.4G+5.8GWIFI+bluetooth4.0, AP6225 WIFI module, (2.4GHz/5GHz WiFi 802.11 b/g/n and 802.11 a/c) |
| Ethernet | Ethernet 1000M |
| bluetooth | BT4.0 |
| Media format | |
| HDMI | HDMI 2.0 for 4K 60Hz with HDCP 1.4/2.2 |
| Video Output | Dual VOP: one supports 4096x2160 with AFBC supported; the other supports 2560x1600 Dual channel MIPI-DSI (4 lanes per channel) eDP 1.3 (4 lanes with 10.8Gbps) to support display, with PSR HDMI 2.0 for 4K 60Hz with HDCP 1.4/2.2 DisplayPort 1.2 (4 lanes, up to 4K 60Hz) Supports Rec.2020 and conversion to Rec.709 |
| Video Codecs | Multi-Media 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps 1080P other video decoders (WMV, MPEG-1/2/4, VP8) 1080P video encoders for H.264 and VP8 Video post processor: de-interlace, de-noise, enhancement for edge/detail/color |
| Image browser | Support JPG, JPEG, BMP, GIF, PNG, JFIF…etc photo format |
| Software Extension | Support Google Play & APK install |
| Protocol | Support DLNA, Miracast Protocol, Support DRM requirement. |
| Remote Control | Support Smart phone remote control, 2.4GHZ wireless air mouse/Remote controller |
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
| Offic Software | WORD/EXCEL/PDF(Depends on APK install) |
| Interface | |
| HDMI Out | 1 x HDMI |
| USB Port | USB2.0 x 1, USB3.0 x 1, Dual USB 3.0 with type-C supported |
| SPDIF | 1 x SPDIF |
| AV | 1 x AV |
| Card Readere | 1 x Micro SD card (TF card) reader |
| Network | 1 x RJ45 LAN Port |
| Power Supply | 1 x 5V2A DC |
Package Included:
1 x CSA96 RK3399 3G/32G TV Box
1 x HDMI Cable
1 x Remote Control
1 x Air Mouse
1 x Power Adapter
1 x User Manual
,,,,,,,
