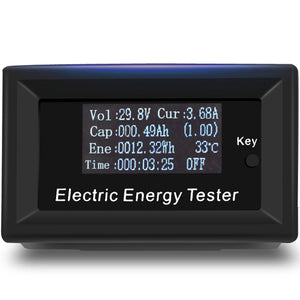

DANIU 300V 20A Electric Energy Tester Current Voltage Meter Charger Power Supply Capacity Tester
Tax included.
Specification:
Input/output interface: 100A Large current copper nose screw
Voltage range: 0.00 V ~ 300V Resolution precision: 0.05 V
Current range: 0.00 A ~ 20A Resolution precision: 0.05 A
Capacity range: 0 ~ 999.999Ah Resolution precision: 0.01 Ah
Power cumulative range: 0 ~ 99999.9Wh Resolution precision: 0.01 Wh
Power range: 000.00 ~ 2999.99W Resolution precision : 0.01 W
Impedance range: 1 ~ 999.9 Resolution precision: 0.1
Temperature range: 0 ~ 99 ??/strong> Resolution precision: 1??/span>
Timing maximum time: 999H59M59S Resolution precision: 1S
Timing maximum time: 999H59M59S Resolution precision: 1S
Timing remind Settings: the countdown 24 hours of any value
Small current standby alert threshold parameters: < 2 W / 0.5 H
Small voltage power supply requirements: measuring < 5V
If it is low voltage, 4~30VDC,please supply independent power supply interface.
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times per second
Over-voltage over-current set the alarm mode: display warning interface to alert users
Over pressure to remind the set range: 1 ~ 300V
Low pressure remind set range: 0 ~ 149V
Flow to remind the set range: 0.2 ~ 100A
Display type: micro power consumption of LCD module LCM black font
Green backlit display in both Chinese and English.
Product size: 105 x 81 x 17mm
Since the power flow: < 0.02 A
Working temperature: -10 ~ +60??/span>
Working humidity: 10 ~ 80 (dew) undoubtedly 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
