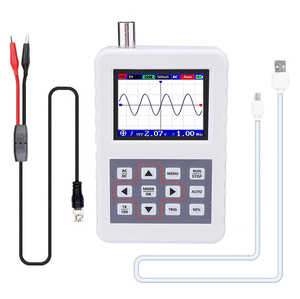

DANIU ADS2050H ADS2031H Handheld Oscilloscope High Precision 5MHz Bandwidth 20M/200M Sampling Rate 2.4 Inch LCD Screen One Key Auto Built-in Lithium Battery

Tax included.

New Upgarded Version ADS2031H( updated from 2019/8/6)

30MHz Analog Bandwidth 200MS/s Sampling rate

Key Features:

1:Memory compression technology, waveform refresh screen does not flicker

2:Afterglow display technology

3:2.4 inch color display screen

4: ADS2050H: 5MHz analog bandwidth @ 20MS/s sampling rate
ADS2031H: 30MHz analog bandwidth @ 200MS/s sampling rate

5:Fast waveform storage

6:Built-in 16M storage space, the maximum storage of 500 waveform pictures

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

11:Equipped with high efficiency one button AUTO

12:Complete triggering function (single, normal, automatic)

13:Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time

14:Day mode and night mode

15:Ultra small volume, easy to carry

Specifications:

1:Analog band width: 5MHz(ADS2050H),30MHz( ADS2031H)

2:Maximum real time sampling rate: 20MS/s(ADS2050H), 200MS/s ( ADS2031H)

3:Vertical sensitivity: 50 mV/div ~ 200 V/div

4:Horizontal time base range: 50S/div ~ 250nS/div

5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

6:Storage depth: 40KB
