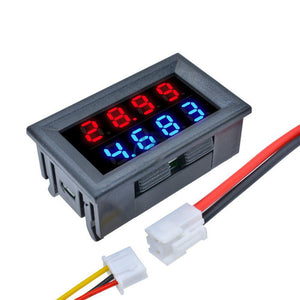

DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display

Features:



High precision: 4-digit

Working voltage: DC 4V-28V

Working current: <20mA

Display: 0.28" Red + Blue Dual LED Display

Voltage Measuring Range: DC 0.000V-200.0V

Current Measuring Range: 0-9.999A

Refresh rate: about 1S / 3times

Operating temperature: -10°C - 65°C

Working pressure: 80 to 106 kPa

Size : 48x29x20 mm

Mounting hole: 46 x 27 mm

Current: Range x 0.08%+Two decimal point

Voltage: Range x 0.08%+Two decimal point



Wiring:



Red line thin: power supply +

Red line (thick): IN+, current input

Yellow line (thick): PW+, measuring terminal voltage input positiv

Black line thick: COM, common measuring



Note:



Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!



Package Included:



1 x DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
