DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module Step UP Step Down Adjustable Regulated for Laboratory Power Supply
>>>Manual: Click here to open<<<
Overview:

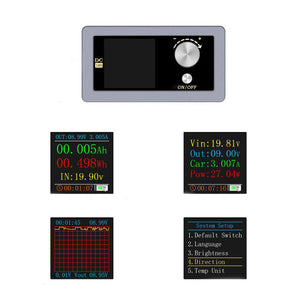

DC-580 NC step-up and step-down adjustable power supply is small in size, powerful in function, stable in performance, high in precision, and has various humanized system settings. Adopt 1.44 inch LCD high-definition display screen, display a variety of data on one screen, the page is concise and rich.
??nbsp;Color screen display；â? Minimal operation；â?Software
Protection；â?Intelligent temperature control
Parameter Description:
1, The parameters of DC-580 numerically controlled buck-boost adjustable power supply are as follows:
Description |
Parameter |
Input voltage |
8V-32V (Note: the lower the input voltage, the smaller the output power) |
The output voltage |
1.8-32V |
Output current |
Up to 5A |
Output Power |
80W (Note: It is necessary to ensure that the input source voltage is greater than 15V and the power is greater than 100W when running at full load) |
Voltage resolution |
0.01V |
Electric current Resolution |
0.001A |
2??/span>The protection mechanism parameters are described in the following tableï¼?/span>
Input anti-reverse connection, output anti-backflow, can charge the rechargeable battery directly, no need to add anti-backflow diode
Desription |
Parameter |
Input anti-reverse |
Have |
Output anti-backflow |
Have |
Output overvoltage protection (OVP) |
1.8V-32V custom adjustment, default 35V |
Output overcurrent protection (OCP) |
0-5A custom adjustment, default 5A |
|
Output over power protection (OPP) |
0-80W custom adjustment, default 80W |
|
Output over temperature protection (OTP) |
45-120 ??custom adjustment, closed by default |
|
Output timeout protection (OHP) |
0-100h custom adjustment, closed by default |
Power on default (ACQ) |
Off by default |
Package Included:
1 x DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module
