DC12V 2 Channel 315MHz Remote Control Switch Relay Module DC Motor Reversing Controller
Tax included.
Specifications:
Working voltage: DC12V
Quiescent current: ≤8mA single working current ≤40 mA two working current (self-locking) ≤80 mA
Working temperature: -10 ° C 60 ° C
Receive sensitivity: ≥-105dBm
Operating frequency: 315MHz
Output voltage: AC, DC optional
Output current: ≤10A
Size: 70mmx50mmx18mm
Instructions:
Jog learning method:
Press the motor control board to learn the code button once, the LED indicator goes out, enter the learning state, first press the remote control 'A' button to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating 'A' 'Key learning is successful for the code. Then press the remote control 'B' button to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating that the 'B'’ button is used to learn the code successfully.
Self-locking learning method:
Press the motor control board to learn the code button twice, the LED indicator goes out, enter the learning state, first press the remote control 'A' button to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating 'A ''Key learning to code success. Then press the remote control 'B' button to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating that the 'B'’ button is used to learn the code successfully.
Interlocking learning method:
Press the motor control board to learn the code button three times, the LED indicator goes out, enter the learning state, first press the remote control 'A' key to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating 'A' 'Key learning is successful for the code. Then press the remote control 'B' button to learn, the LED indicator flashes 5 times continuously, and the LED indicator lights up, indicating that the 'B'’ button is used to learn the code successfully.
Interlock function description:
In the interlock mode, in order to be compatible with more remote controllers, you need to learn two different buttons. The first time you learn the remote button will be automatically turned "on", the second time you learn the remote button will be Automatically as "off".
Example:
The following is an example of using the "A" button of the remote control as "ON" and the "B" button of the remote control as "OFF".
Press the learning button on the circuit board continuously for 3 times. At this time, the system automatically sets the working mode to interlock. After a while, the LED on the board goes out, indicating that it enters the learning state (at this time, you do not want to learn the code and can press KEY to exit) Press the remote control "A" (this remote control button system is automatically assigned to "on"), the LED flashes 5 times and then goes out. Press the remote control "B" (this remote control button system is automatically assigned to "off"), the LED flashes 5 times and then goes out. After a delay of 3 seconds, the LED lights up to indicate successful learning.
Clear data:
Pressing the learning button on the control panel continuously for 8 times will automatically clear all remote controllers that learn the code. After the removal, the remote control that originally learned to code will no longer be controlled.
Output mode explanation:
1. Self-locking: Press the same remote control button, press once, the relay is on, press again, the relay is off.
2. Interlock: Press the “A” button on the remote control, the relay will open, press the “B” button on the remote control, and the relay will be off.
3. Jog: Press the “A” button on the remote control, the relay will open, release the “A” button on the remote control, and the relay will be off. If you keep pressing the "A" button on the remote control, the relay will remain on, when will the remote control be released, and when the relay will be turned off.
Package Included:

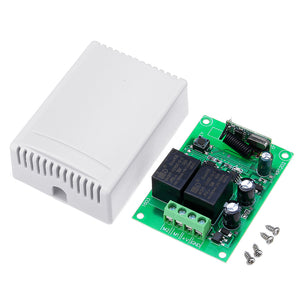

1 x Remote Control Switch Relay With Case
