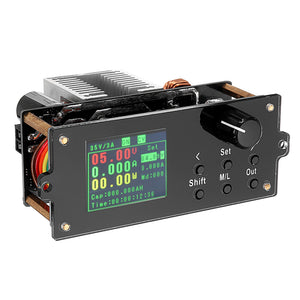

DPX Series 1.8 Inch Color Screen Display CNC Adjustable Power Supply Step Down Module Voltmeter

DPX Series 1.8 Inch Color Screen Display CNC Adjustable Power Supply Step Down Module Voltmeter

  • Save R 1,578.88
Tax included.
SKU:

Advanced microprocessors allow precise adjustment and display of output voltage and current.
With 1.8-inch color LCD display, real-time display of voltage, current, capacity, time and power supply.
It is convenient and quick to adjust and read parameters with buttons and knobs, especially when saving and recalling parameters.
Can set the Output overvoltage (Ovp), overcurrent (Ocp), and overpower protection (Opp) , support turn off the output when the output exceeds the set value.
Comes with cooling fan ensures that the power device will not be damaged by overheating.
Constant voltage, constant current output.
With input reverse connection protection, it can prevent damage to the power supply due to reverse connection.

Specification DPX6012S (With communication) DPX3203S (With communication) DPX6005S (With communication)
Input voltage range 6-75V 6-62V 6-40V
Output voltage adjustment range 0-62V (Input needs to be greater than the output) 0-60V (Input needs to be greater than the output) 0-32V (Input needs to be greater than the output)
Output current adjustment range 0-12A 0-5A 0-3A
Input protection Reverse protection Reverse protection Reverse protection, overvoltage protection
Output protection Overvoltage, overcurrent, overpower protection
Output power
 0-744W 0-300W 0-62W
Output voltage setting resolution 10mV 10mV 10mV
Output current setting resolution 10mA 10mA 1mA
Output ripple <200mVpp (Input 48V, Output 24V, Current 5A) <100mVpp (Input 48V, Output 24V, Current 5A) <100mVpp (Input 35V, Output 12V, Current 2A)
100Hz toggle transmission ratio <1/10000 <1/10000 <1/10000
Voltage, current display accuracy 10mV, 10mA 10mV, 10mA 10mV, (1<1A 1ma. 1>=1A 10ma)
Voltage display error 10mV, 10mA ±1%+20mV ±1%+20mV
Current display error ±2%+20mA ±2%+20mA ±2%+1mA
Response time
 <80ms <50ms <50ms
Storage operation M0-M9 total 10 sets of parameter storage
Heat dissipation method Onboard heatsink and cooling fan
Cooling fan start condition Output current greater than 1.5A or output power greater than 50W Output current greater than 1A or output power greater than 40W Output current greater than 0.5A or output power greater than 25W
Operating ambient temperature 0-60°C
Storage ambient temperature -20~70°C
Use environment Indoor use, maximum humidity 80%
Weight 190g 170g 95g


Package includes:

1 x Step Down Module
