DR25E01 DC 5V 9V 12V 24V 3-5A Flip-Flop Latch DPDT Relay Module Bistable Self-locking Switch Low Pulse Trigger Board for Motor LED PLC
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
null
Features:
1. This is a self-locking (bistable) double-pole double-throw relay. Once triggered, the relay pulls in, triggers again, and the relay is disconnected.
2. With power indicator and reverse polarity indicator.
3. Low pulse control mode, safer to use.
4. Made of high-quality electronic components, stable and reliable performance.
5. Easy to install and convenient to use.
Specifications:
Item Type: DPDT Relay Module

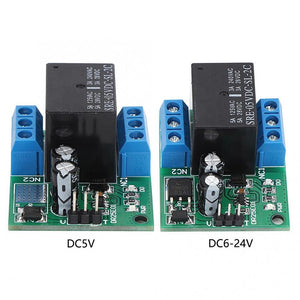

Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)
Module Working Current: Forward 2MA, reverse 60-70MA
Load Current: 5A maxmum (motor <= 3A)
Control Mode: Low pulse control
Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in
Pin Description:
V: Power positive
G: Power negative terminal and trigger signal ground terminal;
T: Trigger signal input (0.2-2 seconds low pulse).
NO1: Relay normally open port
COM1: Relay common port
NC1: Relay normally closed port
NO2: Relay normally open port
COM2: Relay common port
NC2: Relay normally closed port
How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.
How to Use:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical Applications:
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU development board
Toy car
PLC
Note:
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Package Included:
1 x DPDT Relay Module
