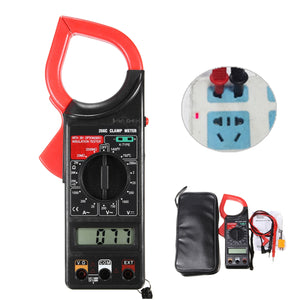

DT266C Digital Clamp Meter Multimeter AC DC Current Volt Resistance Tester Temperature Tester

Features:


3-1/2 digital LCD screen, the maximum display value of 1999.

Data retention function.

Low voltage symbol display.

Overload protection.

On-off measurement.



Specifications:


1.Name: Digital Clamp Multimeter

2.Size: Approx. 230 × 66 × 35mm/ 9 x 2.6 x 1.4"

3.Display size: 14 × 47mm

4.Jaw diameter: Φ64.5mm

5.AC Current: 200A-1000A ±(2%+5dgt)

6.AC Voltage: 0V to 750V

7.DC Voltage: 0V to 1000V

8.Measure Resistance Range: 200Ω-2000MΩ ±(2%+2dgt)
9. Temperature Range: 0~750?? 32~1382??/span>


10.Sampling Speed: 2 times per second

11.Measurement Method: Dual integral A/D switch implement

12.Polarity: Automatic, indicator minus

13.Overload Indication:"1" is displayed

14.Power Requirements: 9V NEDA 1604 or 6F22(Not included)

15.Static electricity: About 4mA

16.Display: LCD. 3-1/2 digital (1999 count) 0.5" high

17.Data Hold: All function and ranges with this features

Package Included:


1 x Digital Clamp Multimeter

1 x Set of Test Leads

1 x Carrying Case

1 x User Manual

1 x TP01 K-type Thermoelectric Couple

Detail Pictures:
